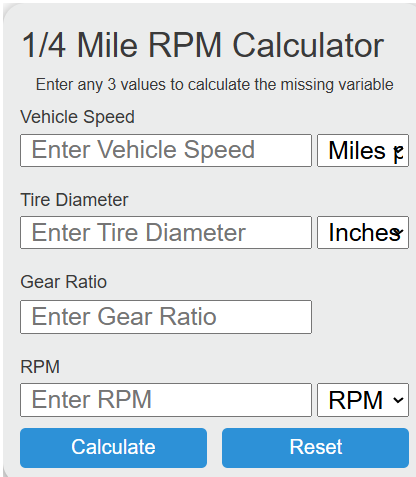

How do I use this calculator?
Choose engine speed, vehicle speed, tire diameter, or overall gear ratio in Solve for, then enter the three displayed known values. The selected unknown appears in the results.
Calculator Operations:
- Enter the Vehicle Speed, Tire Diameter, and Gear Ratio to calculate the RPM.
- Enter the RPM, Tire Diameter, and Gear Ratio to calculate the Vehicle Speed.
- Enter the Vehicle Speed, RPM, and Gear Ratio to calculate the Tire Diameter.
- Enter the RPM, Vehicle Speed, and Tire Diameter to calculate the Gear Ratio.
Use the Calculate button when all known values have been entered and use the Reset button when you want to clear the values from the calculator.
Calculate engine RPM at the end of the 1/4 mile from trap speed, tire diameter and overall gear ratio, or solve for speed, tire size or gear ratio.
Calculator Functions
The calculator ties engine speed to road speed through tire size and gearing. Enter any three of the four values to get the last. Select a function to open it in the calculator.
| Function | Use it when | You enter |
|---|---|---|
| Engine speed (rpm) | You want the rpm at a given road speed, such as at the traps | Vehicle speed, tire diameter and overall gear ratio |
| Vehicle speed (mph) | You know the rpm and want road speed | Engine speed, tire diameter and overall gear ratio |
| Tire diameter (in) | You want the tire size that fits a speed and rpm | Vehicle speed, engine speed and overall gear ratio |
| Overall gear ratio | You want the combined gearing for a speed and rpm | Vehicle speed, tire diameter and engine speed |
Speed can be in mph, km/h or m/s, tire diameter in inches, cm or mm, and engine speed in rpm, rev/s or rad/s.
1/4 Mile RPM Formulas
| RPM | Engine speed (revolutions per minute) |
| V | Vehicle speed (mph) |
| G | Overall gear ratio: transmission ratio × final-drive ratio. In direct drive, use the axle ratio |
| D | Rolling tire diameter (in), not the wheel rim diameter |
At 100 mph with a 4.10 ratio and 28-inch tire, the engine turns 100 × 4.10 × 336 ÷ 28 = 4,920 rpm.
The other three functions rearrange this: V = RPM × D ÷ (G × 336), D = V × G × 336 ÷ RPM and G = RPM × D ÷ (V × 336).
Where 336 comes from
A mile is 63,360 inches [1], a tire travels π × D per turn, and an hour has 60 minutes. The calculator uses the rounded 336, which is about 0.04% lower than the exact value.
Limits of This Estimate
- Assumes no tire or torque converter slip, so an automatic that is slipping turns more rpm than this shows.
- Quarter-mile distance does not enter the calculation. The result depends only on speed and gearing, so it does not predict an elapsed time or trap speed.
Sources
- NIST, Guide to the SI (SP 811), Appendix B.8: mile and foot definitions
