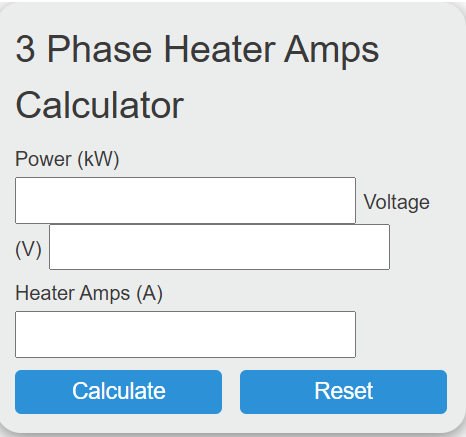

Enter any two values of Power (kW), Voltage (V), or Heater Amps (A) into the calculator to compute the missing value.
Related Calculators
- Amp Drop Calculator
- Ground Resistance Calculator
- Insulation Surface Temperature Calculator
- Heat Rejection Calculator
- All Construction Calculators
3 Phase Heater Amps Formula
The following equation is used to calculate the Heater Amps in a three-phase system.
A = (P * 1000) / (√3 * V)
- Where A is the heater current (A)
- P is the power (kW)
- V is the voltage (V)
To calculate the heater amps, input two of the values and solve for the missing value.
What is a 3 Phase Heater Amps Calculator?
Definition:
A 3 Phase Heater Amps Calculator is a tool used to determine the current drawn by a heater in a three-phase system based on its power and voltage ratings. It assists in proper electrical sizing and helps prevent system overloads.
How to Calculate 3 Phase Heater Amps?
Example Problem:
The following example outlines the steps and information needed to calculate the heater amps in a three-phase system.
First, determine the power rating. In this example, the heater power is 15 kW.
Next, determine the operating voltage. This heater operates at 400 V.
Finally, calculate the heater amps using the formula above:
A = (P * 1000) / (√3 * V)
A = (15 * 1000) / (√3 * 400)
A ≈ 21.645 A
FAQ
What factors can affect the accuracy of a 3 Phase Heater Amps calculation?
The calculated value may vary due to factors such as power factor variations, voltage fluctuations, and system losses. Accurate measurements and appropriate safety margins are recommended.
Can this calculator be used for single-phase systems?
No, this calculator is specifically designed for three-phase electrical systems. Single-phase calculations require different formulas.
Why is the factor of √3 used in the formula?
The factor of √3 accounts for the relationship between line-to-line voltage and phase voltage in three-phase systems, ensuring correct computations.
