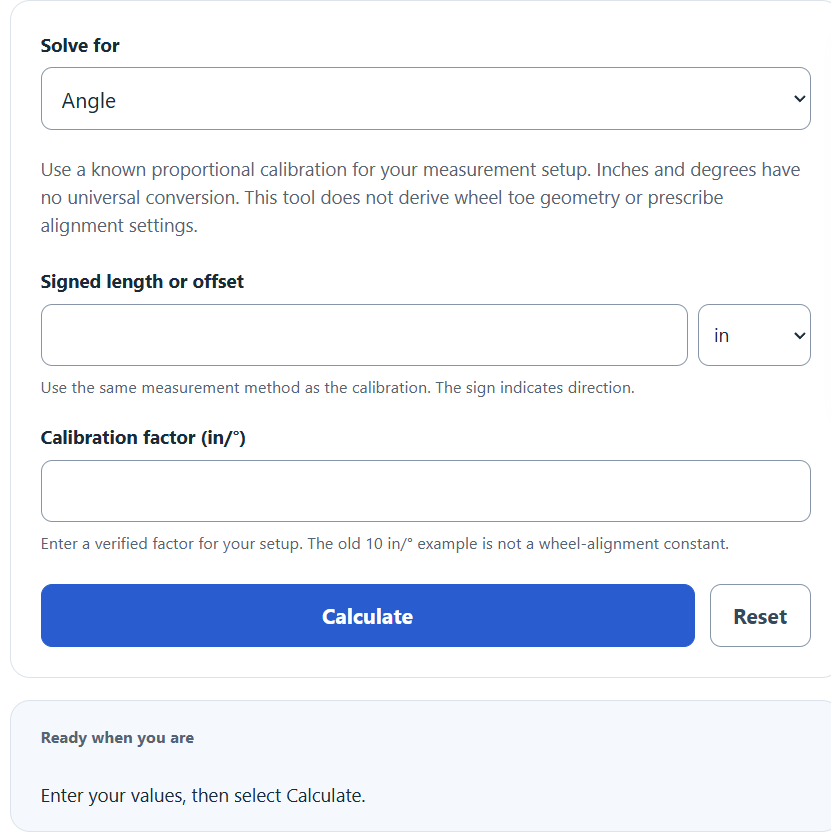

Convert alignment toe from inches or mm to degrees, or degrees to inches, using your tire diameter; typical tire sizes included or enter your own.
- All Automotive Calculators
- Degrees To Percent Calculator
- Degrees to Inches Calculator
- Feet and Inches Calculator: Add, Subtract & Convert
- Feet to Inches Calculator (ft to in) – Convert Instantly
- mm to Inches Calculator + Conversion Chart & Formula
Calculator Functions
| Function | What it does | What it requires |
|---|---|---|
| Toe degrees from inches or mm | Converts a toe measurement to a toe angle | Requires the toe length and the diameter it is measured across: a listed tire size, a custom diameter or an own calibration factor |
| Toe inches and mm from degrees | Converts a toe angle to a toe length in inches and millimeters | Requires the toe angle and the diameter it is measured across: a listed tire size, a custom diameter or an own calibration factor |
| Calibration factor from a known pair | Finds the inches per degree of a setup from one length and its matching angle | Requires a toe length and the toe angle that goes with it |
Toe length is entered in in, mm, cm, ft or m, and fractions such as 1/16 are accepted. A negative value means toe-out. The angle is entered in degrees or radians. The listed diameters are 24.9 in, 26.3 in, 28.5 in and 31.6 in tires. Total toe in gives total degrees out, and per-wheel toe gives per-wheel degrees.
Alignment Inches to Degrees Formulas
| θ | Toe angle (°) |
| T | Toe, the front-to-rear difference measured across the tire |
| D | Diameter the toe is measured across, in the same unit as T: the tire, or the rim for a rim-based gauge |
Toe degrees from inches or mm
Toe of 1/8 in across a 28.5 in tire is arctan(0.125 ÷ 28.5) = 0.2513°, or 15.08 minutes of arc. The same 1/8 in across a smaller tire is a larger angle, which is why inches and degrees have no fixed relationship [1]. Total toe is the difference between the distance across the front of the tires and the distance across the rear [1].
Inches to degrees chart
| Toe (in) | 24.9 in tire | 28.5 in tire | 31.6 in tire |
|---|---|---|---|
| 1/32 | 0.072° | 0.063° | 0.057° |
| 1/16 | 0.144° | 0.126° | 0.113° |
| 1/8 | 0.288° | 0.251° | 0.227° |
| 3/16 | 0.431° | 0.377° | 0.340° |
| 1/4 | 0.575° | 0.503° | 0.453° |
| 3/8 | 0.863° | 0.754° | 0.680° |
| 1/2 | 1.150° | 1.005° | 0.907° |
Toe inches and mm from degrees
A toe angle of 0.25° across a 28.5 in tire is 28.5 × tan(0.25°) = 0.1244 in, or 3.159 mm, which is 1/8 in to the nearest 1/32.
Calibration factor from a known pair
K is in inches per degree. A setup that reads 0.5 in at 1° has K = 0.5 in/°, the same as measuring across a 28.645 in diameter. Choosing Own calibration in the other two functions then uses θ = T ÷ K and T = θ × K in place of the arctangent.
Limits of This Estimate
- The answer depends on the diameter. Toe read at the rim and converted with the tire diameter, or the reverse, is off in proportion to the two diameters.
- The listed tire diameters are typical sizes, not measurements of a particular tire. These estimates are based on the best available data and estimations.
- Own calibration is a straight-line model. It matches the arctangent closely at the small angles used for toe and drifts apart at large angles.
- Set toe to the vehicle maker’s specification, and do not mix total toe with per-wheel toe [1].
Sources
- Southern Illinois University Carbondale, Automotive Technology: Alignment Information and Vocabulary: toe in inches, millimeters or degrees, total toe, and why inches and degrees have no fixed relationship
