Enter the resistance and conductivity into the calculator to determine the cell constant. The cell constant is a characteristic of an electrochemical cell, defined by the geometry of the electrodes and the distance between them.

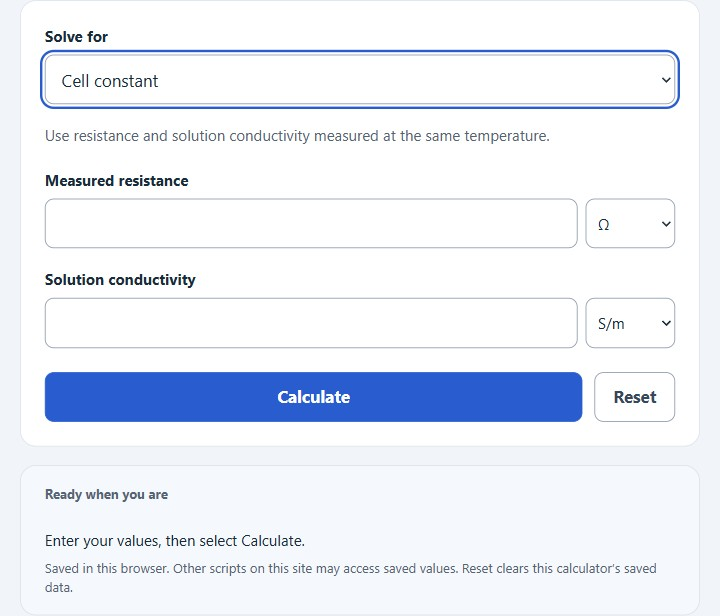

Cell Constant Calculator

Basic
Calibration
Temp Compensation
Geometry

Enter any 2 values to calculate the missing variable

Cell Constant Formula

The following formula is used to calculate the cell constant.

K = \kappa \cdot R

Variables:

  • K is the cell constant (inverse length, e.g., cm-1 or m-1)
  • κ is the conductivity of the solution (e.g., S/cm or S/m)
  • R is the resistance of the cell (ohms, Ω)

To calculate the cell constant, multiply the conductivity of the solution by the resistance of the cell (use consistent units; for example, S/m gives m-1 and S/cm gives cm-1).

What is a Cell Constant?

The cell constant is a factor used in electrochemistry to describe the electrical properties of an electrochemical cell. It is determined by the physical characteristics of the cell, such as the electrode size and the distance between electrodes. The cell constant is used to convert between the measured resistance of the cell and the conductivity of the solution within the cell. It is typically expressed in units of inverse centimeters (cm-1).

How to Calculate Cell Constant?

The following steps outline how to calculate the Cell Constant.

  1. First, determine the resistance of the cell (R) in ohms (Ω).
  2. Next, determine the conductivity of the solution (κ) in Siemens per meter (S/m) or Siemens per centimeter (S/cm).
  3. Next, gather the formula from above = K = κ · R.
  4. Finally, calculate the Cell Constant (K) in inverse length units (e.g., m-1 if κ is in S/m, or cm-1 if κ is in S/cm).
  5. After inserting the variables and calculating the result, check your answer with the calculator above.

Example Problem :

Use the following variables as an example problem to test your knowledge.

resistance of the cell (R) = 200 ohms

conductivity of the solution (κ) = 0.5 S/m
