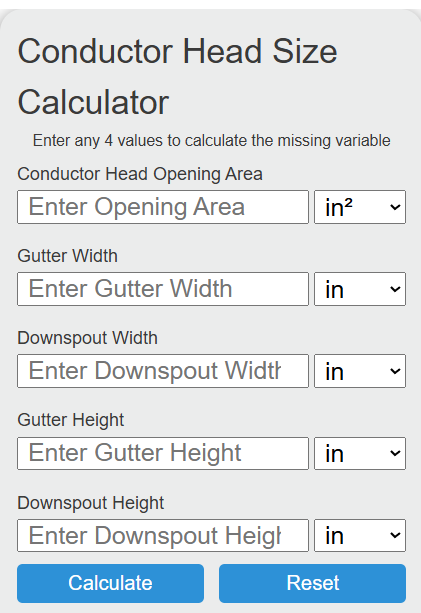

Calculate a geometric opening area or one gutter/downspout dimension from four known values using a sum-of-rectangles model. This is an opening-area check, not final drainage sizing.
Related Calculators
- Fall Per Foot Calculator
- Inch Per Foot Slope Calculator
- Static Head Calculator
- Self Cleansing Velocity Calculator
- All Construction Calculators
Conductor Head Size Formula
The calculator uses a rectangular opening-area relationship. It models the conductor head opening area as the sum of the gutter opening rectangle and the downspout opening rectangle.
- CHS = conductor head opening area
- GW = gutter width
- GH = gutter height
- DW = downspout width
- DH = downspout height

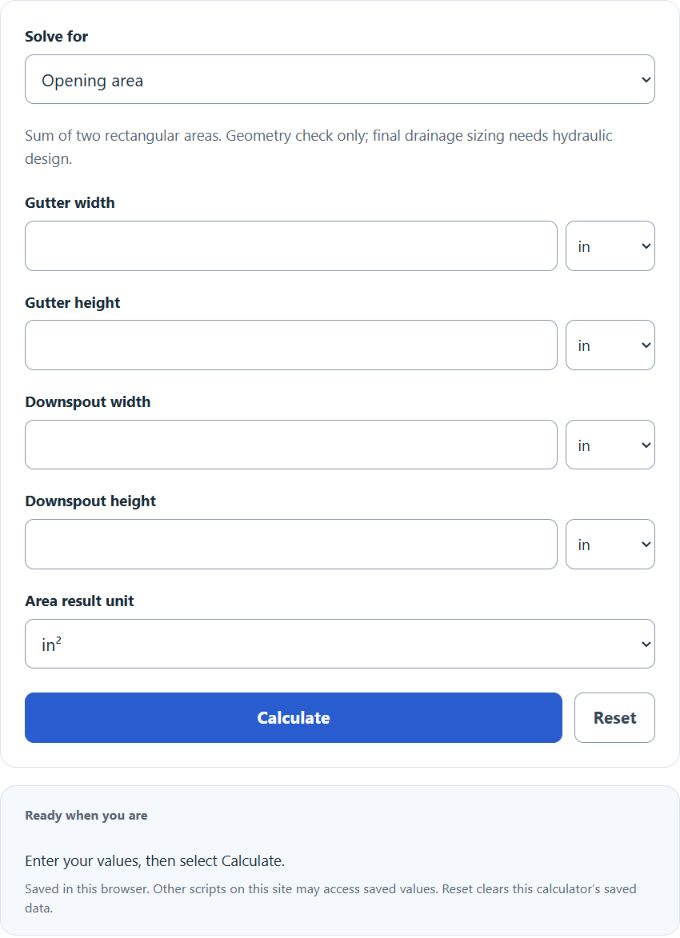

Select opening area to calculate it from the four dimensions. Select a dimension to rearrange the same formula using the other four values. Inputs must be nonnegative, and combinations implying a negative dimension are invalid. A zero paired dimension can make an inverse impossible or not uniquely determined.
All length inputs are converted internally to inches, and the area is calculated in square inches before being converted back to your selected unit. This lets you mix inches, feet, centimeters, and meters in the input fields.
Common Dimensions and Unit Conversions
These tables can help you check whether your entries and results are in a reasonable range for common rectangular gutter and downspout measurements.
| Component | Common nominal size | Example rectangular area |
|---|---|---|
| Small downspout | 2 in × 3 in | 6 in² |
| Larger residential downspout | 3 in × 4 in | 12 in² |
| Box gutter opening example | 5 in × 4 in | 20 in² |
| Larger gutter opening example | 6 in × 5 in | 30 in² |
| Conversion | Equivalent |
|---|---|
| 1 ft | 12 in |
| 1 cm | 0.3937 in |
| 1 ft² | 144 in² |
| 1 cm² | 0.1550 in² |
Example Problems
Example 1: Find the conductor head opening area
Suppose the gutter width is 5 in, the gutter height is 4 in, the downspout width is 3 in, and the downspout height is 4 in.
The conductor head opening area is 32 in².
Example 2: Find the missing gutter width
Suppose the conductor head opening area is 45 in², the downspout width is 3 in, the downspout height is 5 in, and the gutter height is 6 in.
The missing gutter width is 5 in.
FAQ
What does conductor head opening area mean?
Conductor head opening area is the clear rectangular area used in this calculation for the gutter entry and the downspout outlet. In this calculator, it is based on the physical dimensions you enter, not on rainfall intensity, roof area, or hydraulic flow rate.
Why does the calculator request four known values?
The formula has five variables. Select the value to solve for and enter the other four. A dimension solve also needs a nonzero paired dimension for a unique answer; the calculator reports degenerate or inconsistent combinations explicitly.
Can the result be used as final drainage sizing?
Use the result as a geometric opening-area check. Final drainage design may also need roof area, rainfall rate, local code requirements, scupper details, overflow provisions, and outlet losses. If those factors matter for your project, the opening area alone is not a complete sizing method.
