Choose length, sag, span, horizontal tension, or unit load. The parabolic estimate assumes level supports, uniform loading and sag no greater than 5% of span.

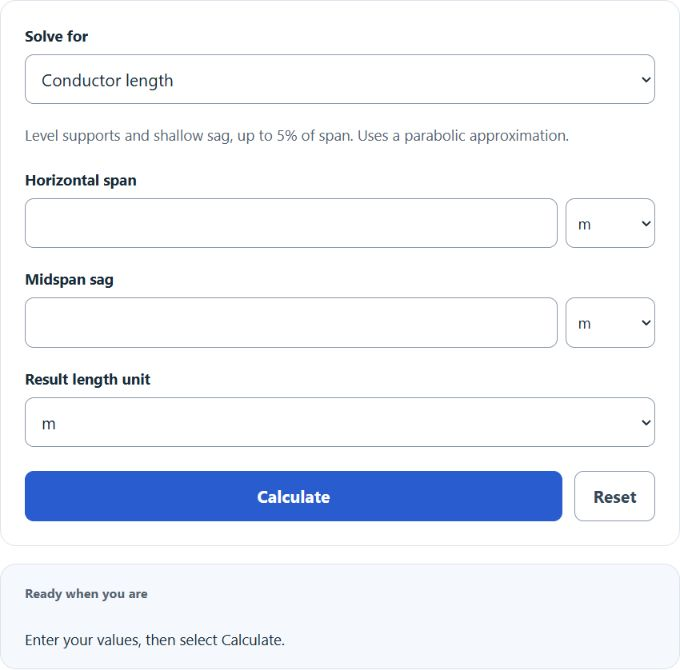

Level supports and shallow sag, up to 5% of span. Uses a parabolic approximation.

Conductor Length Formula

CL ≈ Sp + ((8 × Sa²) / (3 × Sp))

Variables (use consistent length units; the examples use mm):

  • CL is the Conductor Length (mm)
  • Sp is the conductor span (mm)
  • Sa is the conductor sag (mm)

How to Calculate Conductor Length?

The following steps outline how to calculate the Conductor Length.

  1. First, determine the conductor span (mm).
  2. Next, determine the conductor sag (mm).
  3. Next, use the approximation above for level supports and sag no greater than 5% of span.
  4. Finally, calculate the Conductor Length.
  5. After inserting the variables and calculating the result, check your answer with the calculator above.

Example Problem :

Use the following variables as an example problem to test your knowledge.

conductor span (mm) = 30

conductor sag (mm) = 1.5; approximate conductor length = 30.2 mm.

Frequently Asked Questions (FAQ)

What is conductor sag and why is it important?

Conductor sag refers to the vertical displacement or droop of an electrical conductor between two support points. It is crucial because it affects the tension in the conductor, clearance from the ground, and overall system reliability. This simplified estimate does not establish safe clearance or regulatory compliance.

How does temperature affect conductor sag and length?

Temperature changes can significantly affect conductor sag and length due to thermal expansion and contraction. As temperature increases, conductors expand, leading to increased sag and length. Conversely, a decrease in temperature causes the conductors to contract, reducing sag and length. Engineers must account for these variations in their calculations.

Can the formula provided calculate the conductor length for any type of conductor?

The formula is a shallow-sag approximation for uniformly loaded conductors between level supports. This calculator limits sag to 5% of span. Unequal supports, wind, ice, temperature, elasticity and creep require an appropriate engineering model.

Why is it necessary to calculate the conductor length accurately?

Accurate calculation of conductor length is essential for several reasons, including ensuring sufficient clearance from the ground and other objects, maintaining system reliability and safety, and optimizing material usage to reduce costs. It also helps in planning the layout of electrical transmission and distribution systems efficiently.
