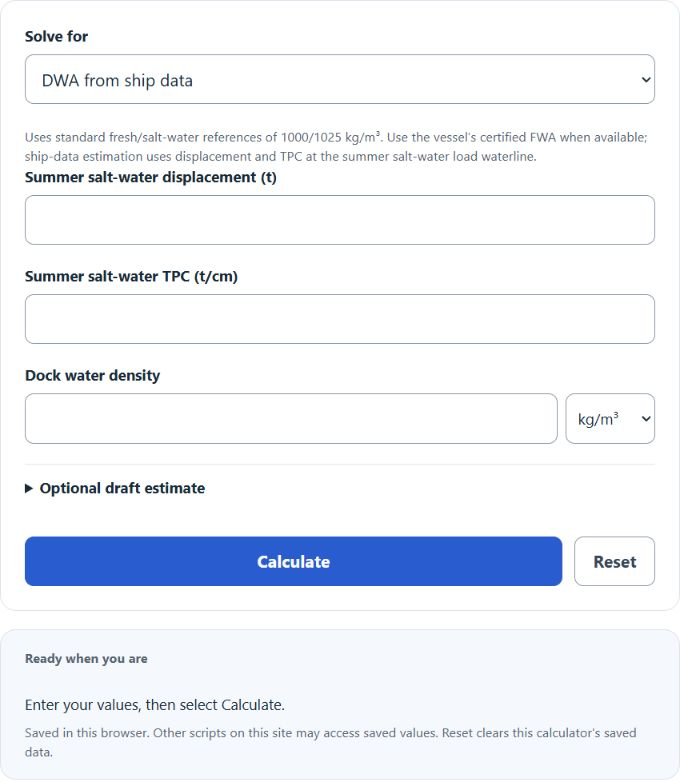

Calculate dock water allowance (DWA) from dock water density and the ship’s fresh water allowance, or estimate FWA from displacement and TPC.

Estimates FWA = displacement รท (4 ร— TPC) at the summer salt-water load line. Use the certified FWA mode when you have it.

Fresh water = 1000 kg/mยณ (1.000), salt water = 1025 kg/mยณ (1.025). Enter the dock waterโ€™s measured density.

Optional draft estimate
Blank omits the draft estimate. Enter the applicable assigned draft.


Related Calculators

Dock Water Allowance Formula

The following formula is used to calculate the dock water allowance (a draft correction) for a given set of values.

DWA = FWA ร— ((ฯโ‚› - ฯd)) / ((ฯโ‚› - ฯfw))

Variables:

  • DWA is the dock water allowance (draft correction; same units as FWA, e.g., mm or inches)
  • FWA is the fresh water allowance (draft correction between sea water and fresh water at the relevant load line)
  • ฯs is the density of sea water
  • ฯd is the density of dock water
  • ฯfw is the density of fresh water (often taken as 1000 kg/mยณ)

To calculate the dock water allowance, multiply the fresh water allowance (FWA) by the ratio of the density difference between sea water and dock water to the density difference between sea water and fresh water. DWA and FWA must be in the same length units, and all densities must be in consistent units.

What is Dock Water Allowance?

Dock water allowance (DWA) is a draft correction used in ship loading practice when a vessel is in dock (or estuarial) water whose density is typically less than standard sea water. Because buoyancy depends on water density, a ship will generally sink deeper (increase draft) in less-dense dock water than it would in sea water at the same displacement. DWA is commonly calculated from the vesselโ€™s fresh water allowance (FWA) and the measured dock-water density so that loading can be adjusted appropriately before the ship proceeds to sea.

How to Calculate Dock Water Allowance?

The following steps outline how to calculate the Dock Water Allowance.


  1. First, obtain the vesselโ€™s certified fresh water allowance (FWA), then choose DWA from a known FWA. Alternatively, use summer salt-water displacement and TPC in DWA and FWA from displacement and TPC to estimate FWA in mm as displacement/(4 ร— TPC in t/cm).
  2. This calculator fixes the standard sea-water reference ฯs at 1025 kg/mยณ.
  3. This calculator fixes the fresh-water reference ฯfw at 1000 kg/mยณ.
  4. Next, measure or determine the density of dock water (ฯd).
  5. Finally, calculate the Dock Water Allowance using the formula DWA = FWA ยท (ฯs โˆ’ ฯd) / (ฯs โˆ’ ฯfw).
  6. After inserting the values and calculating the result, check your answer with the calculator above.

Example Problem :

Use the following variables as an example problem to test your knowledge.

Fresh water allowance (FWA) = 150 mm

Density of sea water (ฯs) = 1025 kg/mยณ

Density of fresh water (ฯfw) = 1000 kg/mยณ

Density of dock water (ฯd) = 1010 kg/mยณ

Then DWA = 150 mm ร— (1025 โˆ’ 1010) / (1025 โˆ’ 1000) = 150 ร— 15 / 25 = 90 mm.
