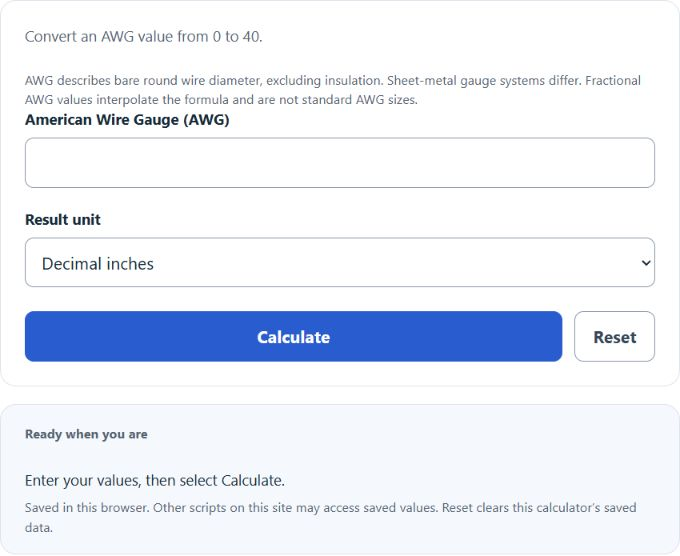

Enter the American Wire Gauge (AWG) size and select the output units to determine the decimal wire diameter in inches or millimeters.
Quick Overview: American Wire Gauge (AWG) is a logarithmic sizing system used for round conductors.
A smaller AWG number means a thicker wire, while a larger AWG number means a thinner wire. This converter calculates the wire diameter directly from the standard AWG relationship and reports the result in decimal inches or millimeters.
- AWG 8 = 0.1285 in ≈ 3.26 mm
- AWG 10 = 0.1019 in ≈ 2.59 mm
- AWG 12 = 0.0808 in ≈ 2.05 mm
- AWG 14 = 0.0641 in ≈ 1.63 mm
- AWG 18 = 0.0403 in ≈ 1.02 mm
The calculator above applies the standard AWG formula automatically for any value you enter from 0 to 40.
