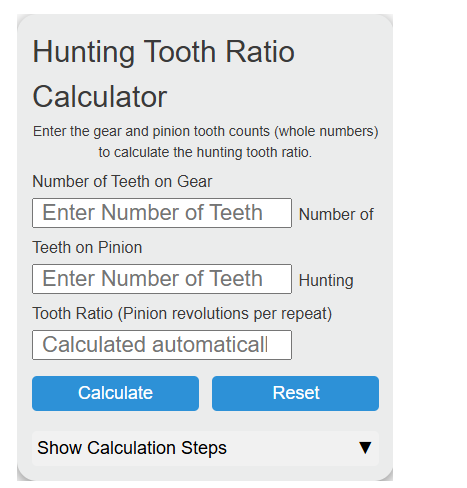

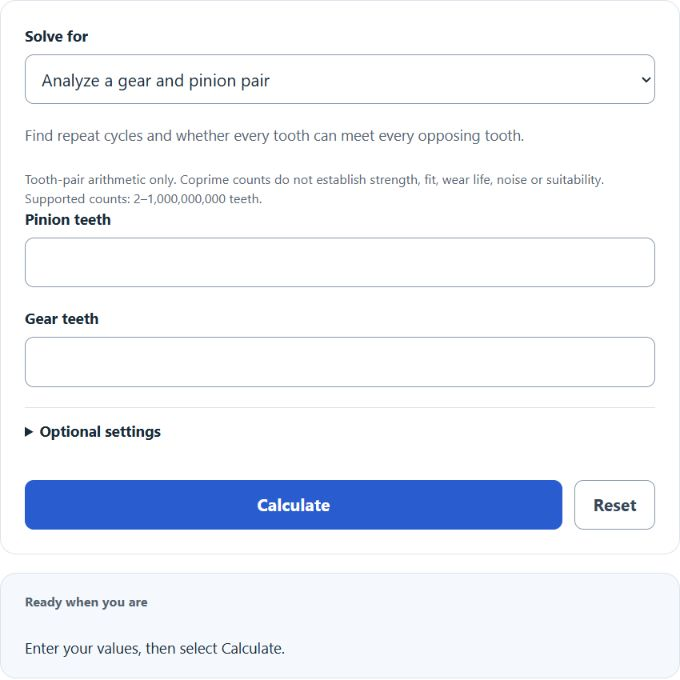

Calculate gear tooth-pair repetition, GCD, LCM and same-pair frequency, or search for a nearby coprime count close to a target gear/pinion ratio. This arithmetic does not establish mechanical suitability or service life.
Hunting Tooth Ratio Formula
The following formula is used to calculate the hunting tooth ratio for a given gear and pinion (defined here as the number of pinion revolutions required before the same tooth pair repeats).
Variables:
- HTR is the hunting tooth ratio (pinion revolutions per repeat)
- T_g is the number of teeth on the gear
- T_p is the number of teeth on the pinion
- GCD is the greatest common divisor of T_g and T_p
- LCM is the least common multiple of T_g and T_p (the number of tooth engagements before the tooth-pair pattern repeats)
To calculate the hunting tooth ratio, compute the greatest common divisor (GCD) of the gear and pinion tooth counts, then divide the gear tooth count by that GCD. A true hunting-tooth gear set occurs when GCD(T_g, T_p) = 1, meaning a given tooth will not repeatedly mesh with the same opposing tooth until all combinations occur.
What is a Hunting Tooth Ratio?
A hunting tooth ratio quantifies how many revolutions of the pinion must occur before the exact same tooth on the pinion re-engages the exact same tooth on the gear. When the GCD of both tooth counts equals 1 (i.e., the counts are coprime), the gear pair is classified as a hunting-tooth set. In such a set, every tooth on the pinion contacts every tooth on the gear exactly once before any pairing repeats. This distributes possible tooth pairings across the full tooth population rather than restricting them to repeating subsets; stresses, wear and fatigue also depend on geometry, material, lubrication and load.
The concept originates from the observation that in a gear pair with a common factor, certain teeth are permanently “married” to specific opposing teeth. A pinion tooth that has a surface defect, for example, will repeatedly strike the same gear tooth on every cycle, accelerating localized pitting and eventually leading to premature failure. In a hunting-tooth configuration, that tooth contacts every opposing tooth. This counting result does not quantify damage dilution or predict failure life.
Hunting vs. Non-Hunting Gear Pairs
The practical difference between a hunting and non-hunting gear pair can be illustrated with specific tooth counts. Consider a 20-tooth pinion meshing with a 60-tooth gear. The GCD of 20 and 60 is 20, so the hunting tooth ratio is 60/20 = 3. This means the pinion completes only 3 revolutions before the identical tooth pair re-engages. Each pinion tooth only ever contacts 3 of the 60 gear teeth, leaving 57 gear teeth that never see that particular pinion tooth. Wear concentrates on those repeating contact points.
Now consider changing the pinion to 19 teeth while keeping the gear at 60. The GCD of 19 and 60 is 1, making this a hunting-tooth set. The pinion must complete 60 full revolutions before the same tooth pairing recurs. Every one of the 19 pinion teeth contacts every one of the 60 gear teeth before any pattern repeats, producing 1,140 unique tooth engagements (19 x 60) per full cycle. The pairings cover both tooth populations; this alone does not guarantee uniform wear, improved finish or longer life.
Benefits of Hunting Tooth Design
The primary advantage of a hunting-tooth gear set is uniform wear distribution. When every tooth combination occurs before any repeats, surface micro-imperfections from manufacturing (tool marks, slight profile errors, hardness variation) are lapped against the maximum possible number of mating surfaces during break-in. Whether this improves running behavior or contact stress depends on the complete gear design and operating conditions.
Damage containment is another significant benefit. If a foreign particle passes through the mesh and chips a tooth, the damage in a non-hunting set is concentrated: the chipped tooth repeatedly strikes the same opposing teeth, accelerating the failure. In a hunting-tooth set, the chipped tooth’s possible contacts are spread across all opposing teeth. Damage progression is not proportional to this contact count alone.
Hunting-tooth gear sets also simplify assembly. Non-hunting gears sometimes require timing marks so that specific teeth align during reassembly, since the wear pattern is localized. Coprime tooth counts do not override manufacturer timing marks or assembly requirements.
Noise characteristics also differ. Tooth counts affect repetition frequencies, but this calculator does not predict sound level or spectral amplitudes. Manufacturing errors, loading and structural response also influence vibration and noise.
Common Hunting Tooth Combinations
The following table shows several gear/pinion combinations, their GCD, whether they form a hunting-tooth set, and the number of unique tooth engagements per full repeat cycle. Designers often adjust tooth counts by one (e.g., from 20/60 to 19/60 or 21/59) to convert a non-hunting pair into a hunting pair while staying close to the target ratio.
| Gear Teeth (T_g) | Pinion Teeth (T_p) | GCD | HTR | Hunting? | Unique Engagements | Approx. Ratio |
|---|---|---|---|---|---|---|
| 41 | 10 | 1 | 41 | Yes | 410 | 4.10:1 |
| 40 | 10 | 10 | 4 | No | 40 | 4.00:1 |
| 37 | 9 | 1 | 37 | Yes | 333 | 4.11:1 |
| 60 | 19 | 1 | 60 | Yes | 1,140 | 3.16:1 |
| 60 | 20 | 20 | 3 | No | 60 | 3.00:1 |
| 47 | 13 | 1 | 47 | Yes | 611 | 3.62:1 |
| 48 | 12 | 12 | 4 | No | 48 | 4.00:1 |
| 53 | 17 | 1 | 53 | Yes | 901 | 3.12:1 |
| 135 | 17 | 1 | 135 | Yes | 2,295 | 7.94:1 |
| 136 | 17 | 17 | 8 | No | 136 | 8.00:1 |
Notice that the 41/10 combination (a common automotive differential ratio marketed as “4.10 gears”) is a hunting-tooth set because 41 is prime. The alternative 40/10 pair gives a clean 4.00:1 ratio but has a GCD of 10, meaning each pinion tooth only contacts 4 of the 40 gear teeth. By choosing 41 over 40 on the ring gear, the manufacturer sacrifices a precise round ratio but has 410/40 = 10.25 times as many unique tooth engagements per cycle; this is not a measured wear-life multiplier.
Hunting Tooth Frequency in Vibration Analysis
In vibration-based condition monitoring of gearboxes, the hunting tooth frequency (HTF) is a diagnostic metric. It represents the rate at which a specific damaged tooth on one gear re-engages a specific damaged tooth on the mating gear. HTF is the lowest characteristic frequency of a gear pair, and all other gear mesh harmonics are integer multiples of it.
HTF is calculated as:
Where GMF is the gear mesh frequency (T_g multiplied by the gear’s rotational speed in Hz, or equivalently T_p multiplied by the pinion’s rotational speed in Hz). A same-pair repetition frequency can help organize a vibration investigation, but a spectral peak alone does not identify a damaged tooth or establish its cause. In a true hunting-tooth set where GCD = 1, the HTF equals the GMF divided by (T_g x T_p), making it a very low frequency that may fall below the resolution of some vibration analyzers. For fixed shaft speeds and similar counts, a common divisor shortens the repeat cycle. Detectability and damage progression require additional measurement and analysis.
Applications Across Industries
Hunting-tooth design appears across a wide range of mechanical systems. In automotive differentials, manufacturers routinely select ring and pinion tooth counts that are coprime. The 4.10 ratio (41/10) is a well-known example; both 41 and 10 share no common factors, ensuring maximum wear distribution across the hypoid gear set that handles the full torque load from the engine to the wheels.
Vehicle transmissions use hunting-tooth ratios on helical gear pairs in the mainshaft and countershaft assemblies. Since these gears operate at high speeds under varying loads during gear shifts, even wear across all teeth is critical for maintaining NVH (noise, vibration, and harshness) targets over the vehicle’s service life.
Motorcycle chain final drives also benefit from coprime sprocket and driven gear tooth counts. A 15/47 sprocket pair has coprime tooth counts, but chain-link contact repetition also depends on the number of chain links; this two-gear model cannot establish every link-to-tooth combination.
In industrial gearboxes for conveyors, mixers and turbines, tooth-count selection is one design consideration. Maintenance intervals and pitting resistance require manufacturer data and operating-condition assessment. Timing gears may require exact ratios, alignment and assembly marks; do not change their counts solely to obtain coprimality.
Precision instrument gears in clocks, telescopes, and CNC positioning systems use hunting-tooth design for a different reason: minimizing periodic positioning error. When every tooth pairing occurs before any repeats, the cumulative pitch error of the gear averages out over one full cycle rather than reinforcing at a sub-cycle frequency. This yields smoother angular positioning and lower transmission error.
Design Tradeoffs When Selecting Tooth Counts
Achieving a hunting-tooth configuration sometimes requires accepting a gear ratio that is not a clean integer. A designer who needs exactly 4.000:1 cannot use coprime tooth counts (since T_g / T_p = 4 requires T_g = 4 x T_p, guaranteeing a GCD of at least T_p). The typical approach is to accept a ratio of 4.10:1 (41/10), 3.73:1 (41/11), or similar near-integer values. Whether a ratio deviation is acceptable depends on the application; wear benefits are not quantified by this calculator.
Another consideration is minimum tooth count for a given pressure angle. Minimum practical tooth count depends on pressure angle, profile shift, cutter geometry and contact requirements; this calculator does not apply an AGMA undercutting or strength standard. Designers must balance the hunting-tooth requirement against manufacturing constraints, ensuring that the selected coprime count does not fall below the geometric minimum for the profile being used.
In high-reduction gear trains with multiple stages, each stage can be independently designed for hunting-tooth behavior. A two-stage reducer with a first stage of 53/17 (ratio 3.12:1) and a second stage of 47/13 (ratio 3.62:1) achieves an overall ratio of approximately 11.3:1, with both stages being hunting-tooth sets. This is preferable to a single-stage 113/10 design, which, while also coprime, may require an impractically large gear diameter.
