Convert kV to torque: enter voltage in kilovolts, current and RPM to get ideal shaft torque in N⋅m or ft⋅lb, or solve for voltage, current or speed.

kV means kilovolts, not a motor’s Kv rating in RPM per volt. Use DC voltage and current measured at the same point.

Optional settings

Calculator Functions

FunctionWhat it doesWhat it requires
TorqueFinds ideal shaft torque from electrical power and speedRequires DC voltage, DC current and rotational speed
VoltageFinds the DC voltage that matches a torque, speed and currentRequires torque, rotational speed and DC current
CurrentFinds the DC current that matches a torque, speed and voltageRequires torque, rotational speed and DC voltage
Rotational speedFinds the speed at which the electrical power equals the shaft powerRequires DC voltage, DC current and torque
Motor Kv to Kt and torqueConverts a motor speed constant Kv to its torque constant Kt, and to ideal torque when a current is givenRequires motor Kv in RPM per volt, with motor current as an option

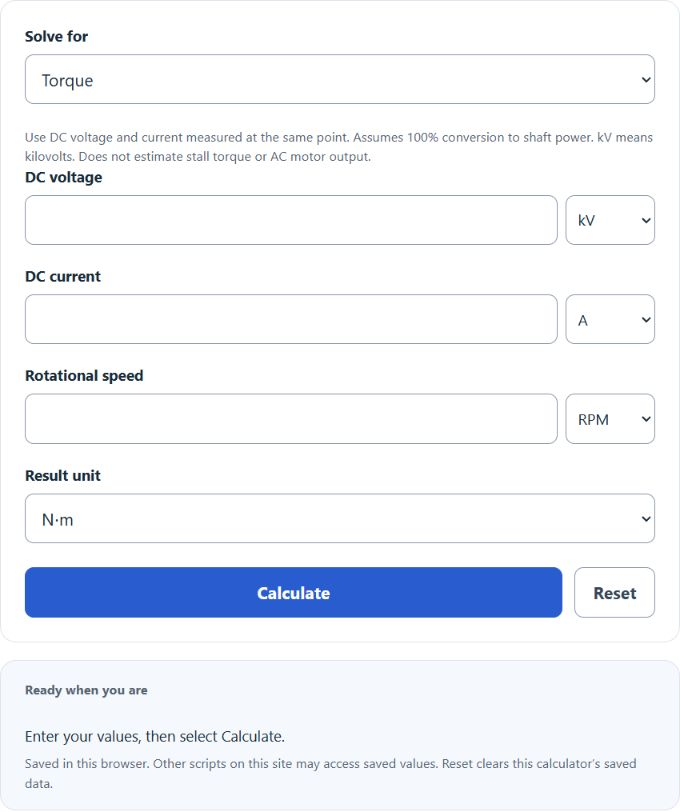

Voltage is entered in kV or V and starts in kV, which here means kilovolts. Current is in A, mA or kA, speed in RPM, rad/s or Hz, and torque in N⋅m, ft⋅lb or kgf⋅m. The first four functions also show the power in watts. A motor’s Kv rating in RPM per volt is a different quantity from kilovolts and belongs in the last function.

kV to Torque Formulas

T = (V × I) ÷ ω [1]
TTorque (N⋅m)
VDC voltage (V). 1 kV = 1,000 V
IDC current (A)
ωAngular speed (rad/s) = RPM × 2π ÷ 60

The formula sets electrical power, V × I, equal to mechanical power, torque × angular speed [1]. A real motor also loses power to winding resistance and friction [1], so its shaft torque is lower than this figure.

Torque

T = 60 × V × I ÷ (2π × RPM)

With speed in RPM the formula takes this form. 0.1 kV (100 V) at 10 A and 3,000 RPM is 1,000 W, and 60 × 100 × 10 ÷ (2π × 3,000) = 3.183 N⋅m. Speed must be greater than zero, because power alone cannot give a torque at a standstill.

Voltage

V = T × ω ÷ I

A torque of 3.183 N⋅m at 3,000 RPM and 10 A needs 100 V, or 0.1 kV. Current must be greater than zero.

Current

I = T × ω ÷ V

A torque of 3.183 N⋅m at 3,000 RPM and 0.1 kV draws 10 A. Voltage must be greater than zero.

Rotational speed

ω = V × I ÷ T

0.1 kV and 10 A against a torque of 3.183 N⋅m give 314.16 rad/s, which is 3,000 RPM. Torque must be greater than zero.

Motor Kv to Kt and torque

Kt = 60 ÷ (2π × Kv) [1]

Kv is the motor speed constant in RPM per volt and Kt is the torque constant in N⋅m per ampere [2]. The two are tied together: in RPM/V and mN⋅m/A their product is 30,000 ÷ π [1], which is the formula above in N⋅m/A. A 1,000 RPM/V motor has Kt = 0.0095493 N⋅m/A. Torque is proportional to current, T = Kt × I [1], so at 10 A the ideal torque is 0.095493 N⋅m.

Limits of This Estimate

  • The first four functions assume all electrical power becomes shaft power. Real output is lower, and the calculator does not apply an efficiency.
  • Voltage and current are DC values measured at the same point. An AC motor also needs a power factor and a phase model, which are not included.
  • Kv and Kt depend on how the maker defines voltage and current for the motor. Battery current into a controller is not the same as motor phase current.
  • The torque from Kt × I is an ideal figure. It is not a continuous rating or a stall torque.
