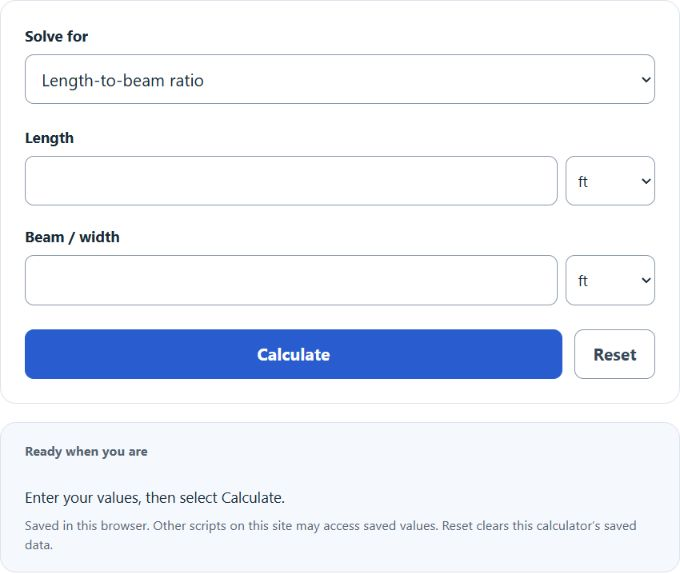

Enter the length of the side (ft) and the length of the beam (ft) into the Length to Beam Ratio Calculator. The calculator will evaluate and display the Length to Beam Ratio.
- All Construction Calculators
- All Ratio Calculators
- Height to Base Ratio Calculator
- Wood Beam Cost Calculator
- Beam Size Calculator
- Top Chord Length Calculator
- Deck Strength Calculator
Length to Beam Ratio Formula
The length-to-beam ratio compares an object’s overall length to its beam, or width. It is a simple way to describe proportion: a larger ratio means the object is longer and more slender relative to its width, while a smaller ratio means it is wider for its length.
LBR = \frac{L}{B}- LBR = length-to-beam ratio
- L = length
- B = beam, or width
If you know the ratio and one dimension, you can rearrange the formula to find the missing value.
L = LBR \cdot B
B = \frac{L}{LBR}What the Ratio Tells You
This ratio is dimensionless when length and beam are measured in the same units. That means a result of 2 means the length is twice the beam, a result of 3 means the length is three times the beam, and so on.
- Higher ratio: longer and narrower shape
- Lower ratio: shorter and wider shape
- Ratio of 1: length and beam are equal
Length-to-beam ratios are useful anywhere proportions matter, including hulls, platforms, framed openings, panels, and structural layouts.
How to Calculate the Length to Beam Ratio
- Measure the total length.
- Measure the beam or width.
- Make sure both values use the same unit.
- Divide length by beam.
- Express the result as a number or as a length:beam relationship.
For example, if the length is 50 ft and the beam is 25 ft:
LBR = \frac{50}{25} = 2This can be read as a 2:1 length-to-beam ratio.
Examples
Example 1
A structure has a length of 72 ft and a beam of 18 ft.
LBR = \frac{72}{18} = 4The ratio is 4:1, meaning the length is four times the beam.
Example 2
The beam is 12 ft and the desired ratio is 3.5. Find the required length.
L = 3.5 \cdot 12 = 42
The required length is 42 ft.
Example 3
The length is 30 m and the ratio is 2.5. Find the beam.
B = \frac{30}{2.5} = 12The beam is 12 m.
Quick Interpretation Guide
| Situation | Meaning |
|---|---|
| Ratio increases | The object becomes longer relative to its beam |
| Ratio decreases | The object becomes wider relative to its length |
| Beam increases while length stays fixed | The ratio goes down |
| Length increases while beam stays fixed | The ratio goes up |
Common Mistakes
- Mixing units: dividing feet by inches or meters by centimeters without converting first gives the wrong ratio.
- Reversing the formula: the standard form is length divided by beam, not beam divided by length.
- Confusing ratio with difference: a ratio compares relative size, while a difference only shows how far apart two values are.
- Rounding too early: keep a few extra decimal places until the final step if precision matters.
Why This Calculator Is Useful
This calculator helps you quickly evaluate proportions without doing repeated manual conversions or division. It is especially helpful when comparing multiple designs, checking dimensional consistency, or solving for a missing beam or length from a target ratio.
If your dimensions are entered in consistent units, the result gives a fast and reliable measure of shape proportion that can be used for planning, comparison, and design review.
