Calculate the area of a limacon r = b + a cos θ from a and b, including inner-loop and outer-loop areas, or solve for a or b from a known area.

Optional settings

Limacon Area Formula

A limacon is a polar curve whose radius changes with angle. In the calculator’s notation, the curve is typically written in one of these forms:

r = b ± acos(θ)

or

r = b ± asin(θ)

Over one complete revolution, the full-turn polar area integral is:

LA = π(b² + (a²) / (2))
  • LA = full-turn polar area integral (the sum of loop areas, with overlap counted again)
  • b = constant term in the polar equation
  • a = coefficient of the sine or cosine term

This makes the calculator especially useful when you know the two polar parameters and want the full-turn polar integral immediately without performing integration by hand.

Why the Formula Works

Area in polar coordinates is found from the standard polar-area relationship:

A = (1) / (2)∫₀2π r² dθ

Substituting a limacon equation and simplifying over a full turn causes the mixed sine/cosine term to average to zero, leaving:

A = π b² + (π a²) / (2)

That is why the final result depends only on the squared magnitudes of a and b. Changing from sine to cosine, or switching the sign in the equation, changes the orientation of the curve but not this integral over one full revolution.

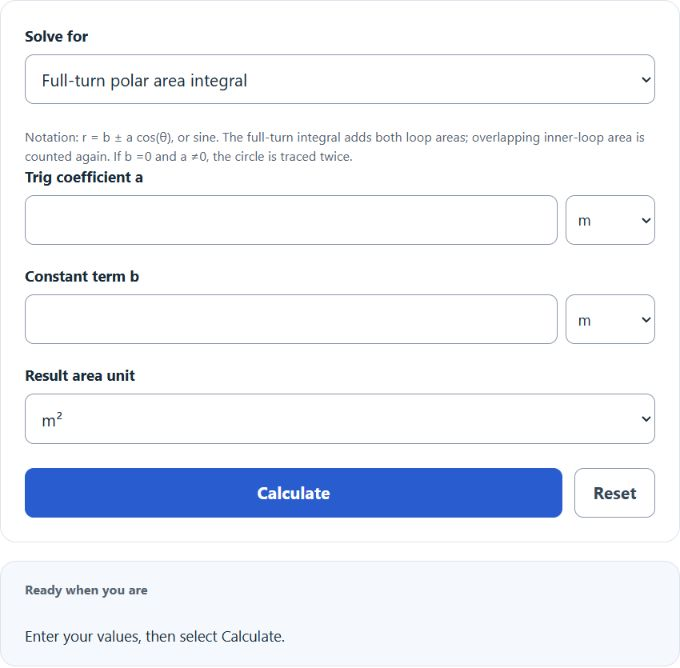

How to Use the Limacon Area Calculator

  1. Enter the constant term of the polar equation as b.
  2. Enter the sine/cosine coefficient as a.
  3. Choose a length unit independently for each input; the calculator converts both consistently.
  4. Choose the solve mode and result unit, then Calculate. Inverse modes return a nonnegative coefficient magnitude; area does not determine its sign.

If your class notes or textbook use different letters, match the fields by meaning rather than by the letter name. The constant radial offset belongs in the b field, and the trig coefficient belongs in the a field.

What the Inputs Mean Geometrically

The constant term controls the overall offset of the curve from the pole, while the trig coefficient controls how strongly the curve bulges inward or outward. As their relative sizes change, the limacon can appear in several familiar forms:

  • Inner-loop limacon: occurs when the constant term is smaller than the trig coefficient.
  • Cardioid: occurs when the constant term and trig coefficient are equal.
  • Dimpled or convex limacon: occurs when the constant term is larger than the trig coefficient.

The calculator returns the full-turn integral over one complete rotation. For an inner-loop limacon, it adds the inner and outer loop areas, so the overlapping inner region is counted again; this is not the unique union area or one selected loop. If b = 0 and a is nonzero, the curve is a circle traced twice and the full-turn integral is twice its geometric area. The point case a = b = 0 gives zero.

Example

If the constant term is 3 and the trig coefficient is 4, then the area is:

LA = π(3² + (4²) / (2)) = 17π ≈ 53.407

If the original measurements are in meters, the area is in square meters. If the measurements are in feet, the area is in square feet. The result may use any selected area unit; each length input is converted before squaring.

Common Calculation Notes

  • Both coefficients represent lengths; select each unit independently. Signed coefficients are allowed in the forward mode.
  • The result is a two-dimensional area, so the unit is squared.
  • Sine-form and cosine-form limacons use the same area formula for a full revolution.
  • Sign changes affect direction and orientation, but not the full-turn integral when the magnitudes stay the same.
  • If you need only an inner loop or only an outer portion, a separate definite polar integral is required.

When This Calculator Is Most Helpful

This calculator is useful in polar graphing, analytic geometry, precalculus, and calculus problems involving closed polar curves. It is also helpful when checking homework, verifying hand integration, comparing limacon shapes, or converting a polar equation into a quick geometric area result.
