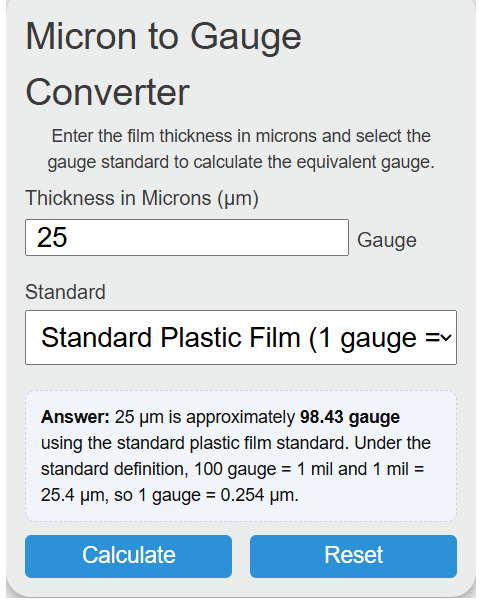

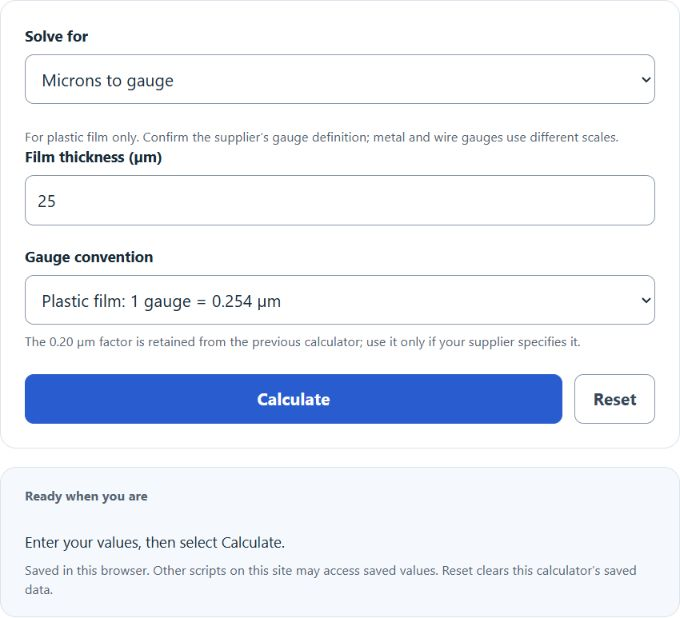

Enter the thickness in microns and choose the gauge standard to convert microns (µm) to gauge, or reset the calculator to start over.
- Gsm To Thickness Calculator
- Grams To Mm Calculator
- cc/rev to in3/rev Converter
- In^3 to mL Conversion Calculator
- All Unit Converters
Micron to Gauge Formula
The following formula is used to convert film thickness in microns to gauge.
G = M / MPG
For the standard plastic film convention:
G = M / 0.254
Variables:
- G is the gauge
- M is the thickness in microns (µm)
- MPG is the microns per gauge factor for the selected standard
To calculate gauge, divide the film thickness in microns by the microns-per-gauge factor for the selected gauge standard.
What is Micron to Gauge Conversion?
Micron to gauge conversion is used to compare film thickness expressed in metric units with the traditional gauge system commonly used in plastics and packaging. A micron is one-millionth of a meter, while gauge is a legacy thickness designation derived from imperial film measurements. Because many packaging specifications, supplier sheets, and manufacturing references still use gauge, converting from microns helps ensure that the thickness values match across different systems.
In the standard plastic film convention, 100 gauge equals 1 mil, and 1 mil equals 25.4 microns. This means 1 gauge equals 0.254 microns, so gauge can be found by dividing the number of microns by 0.254.
How to Calculate Micron to Gauge?
The following steps outline how to convert microns to gauge.
- First, determine the film thickness in microns (µm).
- Next, identify the gauge convention being used, such as the standard plastic film definition.
- Then divide the micron value by the microns-per-gauge factor.
- For the standard convention, use the formula G = M / 0.254.
- Finally, compare your result with the calculator above.
Example Problem:
Use the following variables as an example problem to test your knowledge.
Thickness in Microns (M) = 25
Microns per Gauge (MPG) = 0.254
Gauge (G) = 25 / 0.254 = 98.43
Micron to Gauge Conversion Table
The table below lists sample thickness values converted from microns to gauge using the standard relationship where 1 gauge = 0.254 µm.
| Thickness (µm) | Approximate Gauge |
|---|---|
| 10 µm | 39.37 gauge |
| 12 µm | 47.24 gauge |
| 20 µm | 78.74 gauge |
| 25 µm | 98.43 gauge |
| 50 µm | 196.85 gauge |
Why Gauge is Still Used
Although microns are the clearer metric measurement, gauge is still widely used in packaging, converting, and plastics manufacturing. Many older specifications and vendor references list thickness in gauge rather than microns. Understanding both units makes it easier to compare materials, read product sheets, and verify that packaging requirements refer to the same actual thickness.
For standard plastic film, gauge is closely tied to mils through the relationships 100 gauge = 1 mil and 1 mil = 25.4 µm. This is why the standard conversion factor of 0.254 microns per gauge is so commonly used.
