Calculate oil and water amounts from an oil-to-water mix ratio and total volume, or find the oil:water and water:oil ratio from retort readings.

Volume basis; total includes oil and water only.

Use 80:20, 4/1 or 4-1. A single number means that number : 1.

Optional settings

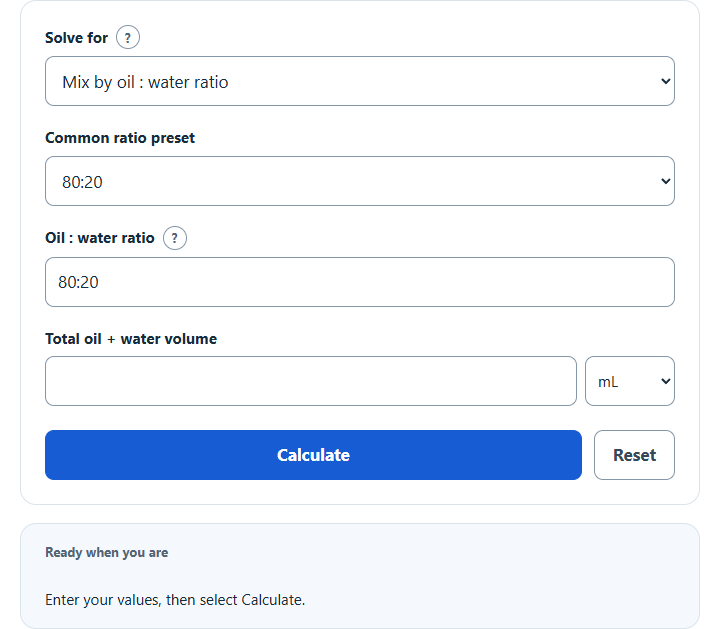

Calculator Functions

FunctionWhat it doesWhat it requires
Mix by oil : water ratioFinds the volume of oil and the volume of water in a batch mixed to a set ratioRequires the oil : water ratio, from a preset or typed in, and the total volume of oil plus water
From retort readingsFinds the oil : water ratio of the liquid part of a drilling mud sampleRequires the retort oil and water readings as percentages of the whole sample; the solids reading is optional

Presets cover 90:10, 80:20, 75:25, 70:30, 60:40 and 50:50. A custom ratio can be typed as 80:20, 4/1 or 4-1, and a single number such as 4 means 4 : 1. The total volume is entered in mL, L, US gal or bbl. Both functions show the ratio in lowest terms, the water : oil ratio, oil ÷ water, water ÷ oil, and each liquid as a percentage of the two together.

Oil Water Ratio Formulas

Oil % = O ÷ (O + W) × 100 [1]
Oil %Oil as a percentage of the total liquid
OAmount of oil: a ratio part, a volume, or a retort reading in volume percent
WAmount of water, in the same terms as O

Water % is W ÷ (O + W) × 100, and the two percentages always add to 100. The ratio is written with oil first, such as 80:20, and reduces to 4 : 1 [1].

Mix by oil : water ratio

Voil = V × O ÷ (O + W)

V is the total volume of oil plus water, and the water volume is the rest. For 1,000 mL at 80:20, the oil is 1,000 × 80 ÷ 100 = 800 mL and the water is 200 mL. At 3:1 the same batch is 750 mL of oil and 250 mL of water. The ratio parts do not have to add to 100.

From retort readings

A retort distils a mud sample and reports water, oil and solids, each as a volume percent of the whole sample [2]. The oil : water ratio uses only the oil and water readings, each taken as a share of the total liquid [1]. Readings of 60% oil and 18% water give 60 ÷ 78 = 76.9% oil and 23.1% water, which is reported in the field as 77/23 [1] and shown by the calculator as 10 : 3.

The solids reading does not change the ratio. When it is entered, the calculator checks the three readings: a total above 100% is rejected, and a total more than 0.5 away from 100% adds a note to check the readings. Oil plus water above 100% is also rejected.

Water Oil Ratio

WOR = W ÷ O

The water oil ratio is the same pair of numbers turned around. A mix at 80:20 oil to water is 1 : 4 water to oil, and W ÷ O = 0.25. The calculator lists it with every result. With no oil in the sample it is undefined, as oil ÷ water is with no water.

Limits of This Estimate

  • The ratio is by volume, not by mass. Oil is lighter than water, so the same mix has a different ratio by weight.
  • Mix volumes assume the oil and water volumes simply add, at the same temperature.
  • The retort ratio describes the liquid phase only. It says nothing about the solids content or the salt dissolved in the water.

Sources

  1. SLB, Energy Glossary, oil/water ratio: definition of the ratio on a total-liquid basis and the 60% oil, 18% water example
  2. SLB, Energy Glossary, retort: what a retort measures: volume percent water, oil and retort solids
