Calculate photon energy, frequency, wavelength, or Planck’s constant from E = hf and E = hc/λ, with units like joules, eV, Hz, and nm.
Related Calculators
- Wave Period Calculator
- Phase Constant Calculator
- Crossover Frequency Calculator
- Equilibrium Temperature Calculator
- All Physics Calculators

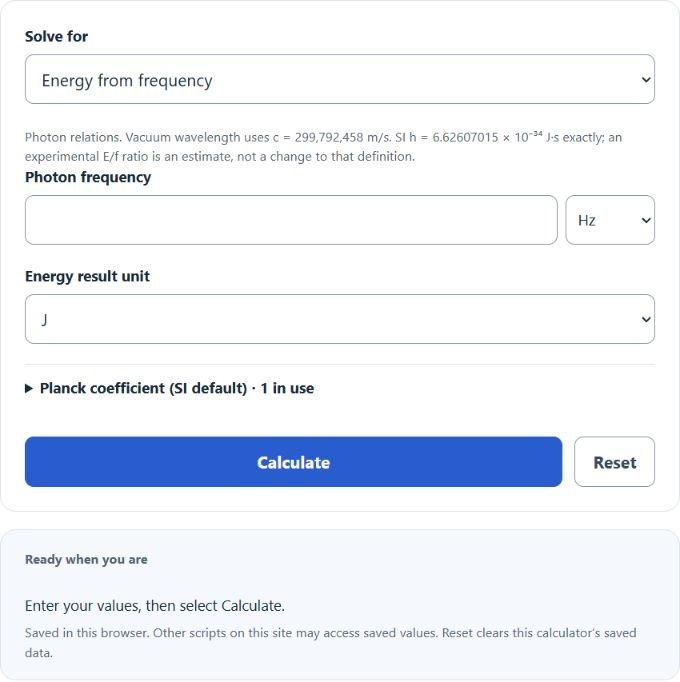

Calculator Functions
| Function | What it does | What it requires |
|---|---|---|
| Energy from frequency | Finds the energy of one photon from its frequency | Requires the photon frequency; the Planck coefficient is optional and starts at the SI value |
| Frequency from energy | Finds the frequency of a photon from its energy | Requires the photon energy; the Planck coefficient is optional and starts at the SI value |
| Estimate h from energy and frequency | Finds the Planck constant implied by a measured photon energy and frequency, and its percent difference from the SI value | Requires the photon energy and the photon frequency |
| Energy from vacuum wavelength | Finds the energy of one photon from its wavelength in vacuum | Requires the vacuum wavelength |
| Vacuum wavelength from energy | Finds the vacuum wavelength of a photon from its energy | Requires the photon energy |
| Vacuum wavelength from frequency | Converts a frequency to its wavelength in vacuum | Requires the photon frequency |
| Frequency from vacuum wavelength | Converts a vacuum wavelength to its frequency | Requires the vacuum wavelength |
Frequency is entered in Hz, kHz, MHz, GHz or THz, energy in J, eV, kJ or thermochemical calories, and wavelength in m, nm, µm or Å. Each result can be shown in any of the same units, and an energy result is also given in joules or electronvolts. The wavelength field offers five example values: 650 nm, 532 nm, 405 nm, 1550 nm and 121.6 nm.
Planck’s Constant Formulas
| E | Energy of one photon (J) |
| h | Planck constant, exactly 6.62607015 × 10⁻³⁴ J·s [2] |
| f | Photon frequency (Hz) |
Energy from frequency
The formula above applies directly. A 500 THz photon carries 6.62607015 × 10⁻³⁴ × 5 × 10¹⁴ = 3.313035075 × 10⁻¹⁹ J, which is 2.0678 eV. Entering a different Planck coefficient changes the answer, and the result then carries a note that the value is not the defined SI constant.
Frequency from energy
A 2 eV photon has an energy of 3.204353 × 10⁻¹⁹ J, so its frequency is 4.83598 × 10¹⁴ Hz, or 483.598 THz. The optional Planck coefficient works the same way as in Energy from frequency.
Estimate h from energy and frequency
The result is the ratio of the two measurements, shown with its relative difference from the SI value, (hest ÷ h − 1) × 100. A measured 3.3 × 10⁻¹⁹ J at 5 × 10¹⁴ Hz gives 6.6 × 10⁻³⁴ J·s, which is 0.3934% below the SI value.
Energy from vacuum wavelength
This comes from putting f = c ÷ λ into E = h × f. c is the speed of light in vacuum, exactly 299,792,458 m/s [3], and λ is the wavelength in meters. Green laser light at 532 nm carries 3.7339 × 10⁻¹⁹ J per photon, or 2.3305 eV.
Vacuum wavelength from energy
A 2 eV photon has a vacuum wavelength of 619.92 nm.
Vacuum wavelength from frequency
A frequency of 500 THz corresponds to 599.585 nm. The Planck constant is not used in this function or the next.
Frequency from vacuum wavelength
Red laser light at 650 nm has a frequency of 4.61219 × 10¹⁴ Hz, or 461.22 THz.
Unit conversions
1 eV is 1.602176634 × 10⁻¹⁹ J, the elementary charge in coulombs multiplied by one volt [4]. 1 thermochemical calorie is 4.184 J [5].
Limits of This Estimate
- The four wavelength functions assume vacuum and always use the SI value of h. Wavelength inside glass, water or another medium is not modeled.
- A custom Planck coefficient affects only Energy from frequency and Frequency from energy.
- The SI fixes h by definition [2], so Estimate h from energy and frequency tests a measurement, not the constant. Measurement uncertainty is not carried through to the result.
- In a photoelectric experiment, the kinetic energy of the ejected electron is less than the photon energy by the work function of the material. Add the work function before entering the energy.
Sources
- NASA Goddard Space Flight Center, Imagine the Universe: Electromagnetic Spectrum: energy equals the Planck constant times frequency, and wavelength equals the speed of light divided by frequency
- NIST, CODATA Value: Planck constant: exact value of h
- NIST, CODATA Value: speed of light in vacuum: exact value of c
- NIST, CODATA Value: elementary charge: exact value behind the electronvolt
- NIST, Guide to the SI (Special Publication 811), Appendix B.8: thermochemical calorie and electronvolt in joules
