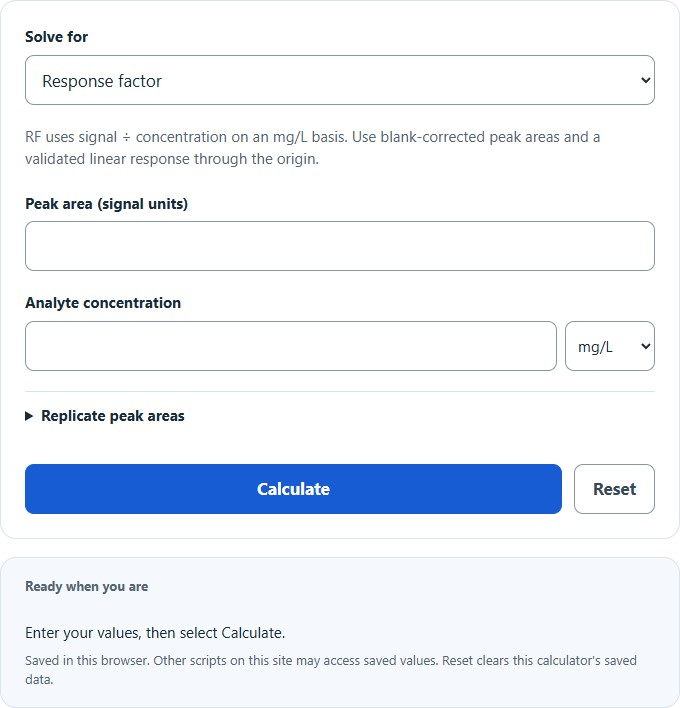

Enter the peak area and the concentration into the Calculator. The calculator will evaluate the Response Factor.
Related Calculators
- Selectivity Factor Calculator
- RF Value Calculator
- Extinction Coefficient Calculator
- Extraction Yield Calculator
- All Chemistry Calculators
What is a Response Factor?
A response factor (RF) is the ratio between the detector signal produced by an analyte and the quantity of that analyte. In chromatography, this translates to peak area divided by concentration. The concept exists because no detector responds equally to all compounds: a 1 mg/L solution of ethanol and a 1 mg/L solution of chloroform will generate very different peak areas on the same instrument under identical conditions.
The practical origin of response factors in gas chromatography (GC) is injection variability. Standard GC injections are approximately 1 microliter, a volume difficult to reproduce manually with high precision. By calculating the response factor from a known standard, analysts can normalize results across injections and account for day-to-day instrument drift.
Response Factor Formula
RF = PA / C
Variables:
- RF is the Response Factor (unitless)
- PA is the peak area (detector signal units, e.g., mV*s or arbitrary counts)
- C is the concentration (mg/L, g/L, or µg/mL)
The mathematical basis: peak area is proportional to moles of compound (n) times a detector-specific constant (k), expressed as Area = k x n. Since n = concentration x volume, the response factor captures the k value for a specific compound on a specific detector system.
Absolute vs. Relative Response Factor
The absolute response factor (RF) relates peak area directly to known concentration. It is compound-specific, detector-specific, and instrument-specific: an RF determined on one GC cannot be transferred to another without recalibration.
The relative response factor (RRF) compares the detector response of one compound to another under identical conditions, most commonly an impurity versus an active pharmaceutical ingredient (API) or an analyte versus an internal standard.
RRF = RF_impurity / RF_standard
RRF is determined by analyzing equal concentrations of the impurity and reference standard, then dividing the slope of the impurity calibration curve by the slope of the reference curve. Its primary use in pharmaceutical analysis is quantifying impurities without requiring a pure impurity standard for every sample batch.
Detector Type and Response Factor Behavior
The magnitude and variability of response factors depends heavily on the detector used.
| Detector | Basis of Response | RF Variability | Common Application |
|---|---|---|---|
| FID (GC) | C-H bond ionization; proportional to effective carbon number (ECN) | Low for hydrocarbons; high for heteroatom-containing compounds | Solvents, fuels, organic impurities |
| TCD (GC) | Thermal conductivity difference from carrier gas | Up to 10 to 100-fold between compounds | Permanent gases, inorganics, water |
| ECD (GC) | Electron capture by electronegative groups | Extreme; up to 10^6-fold selectivity for halogenated compounds | Pesticides, PCBs, halogenated solvents |
| UV/DAD (HPLC) | UV absorbance at detector wavelength; molar absorptivity | Highly compound-dependent; based on chromophore presence | Pharmaceuticals, APIs, impurity profiling |
For FID, the effective carbon number (ECN) approach allows prediction of RF without a pure standard: each carbon in a chain contributes +1 to ECN, while oxygen reduces it by 1 and carbonyl groups have ECN of 0. This makes FID the most predictable detector for RF estimation from structure alone.
How to Calculate Response Factor
The following steps outline how to calculate the Response Factor.
- Prepare a calibration standard at a known concentration of the target compound.
- Inject the standard and record the peak area from the chromatogram.
- Apply the formula: RF = PA / C
- For higher accuracy, run multiple injections and average the RF values; RSD (relative standard deviation) below 2% is generally acceptable.
- Check your answer with the calculator above.
Example Problem:
A chromatography analyst injects a 1.2354 mg/L standard of a pharmaceutical impurity. The detector returns a peak area of 5.678. The response factor is calculated as:
RF = 5.678 / 1.2354 = 4.5959
This RF value can then be applied to unknown samples: if a sample injection returns a peak area of 8.25, the unknown concentration = 8.25 / 4.5959 = 1.795 mg/L.
Acceptable Response Factor Ranges
Regulatory guidance sets boundaries on when a response factor is considered reliable for quantitative use. The commonly accepted range for relative response factors in pharmaceutical impurity testing is 0.8 to 1.2. Values within this window are often rounded to 1.0, meaning the impurity and the reference compound respond identically enough that no correction is needed. When RRF falls outside 0.8 to 1.2, a correction factor must be applied explicitly in all calculations.
The British Pharmacopoeia states that an RRF below 0.2 or above 5.0 should not be used for quantification. At these extremes, small errors in the RF determination propagate into large concentration errors. The ICH Q3B(R2) guideline requires that if the response factor differs significantly from the assumed value during method validation, the actual impurity amount must be re-measured and re-evaluated against qualification thresholds.
| RRF Range | Interpretation | Action Required |
|---|---|---|
| 0.95 to 1.05 | Negligible difference in response | Round to 1.0; no correction needed |
| 0.80 to 1.20 | Acceptable variation | Apply RRF correction in calculations |
| 0.20 to 0.80 or 1.20 to 5.0 | Significant response difference | RRF correction required; validate method carefully |
| Below 0.20 or above 5.0 | Unreliable quantification | Do not use RRF; obtain and use impurity reference standard |
FAQs
What is a Response Factor in chromatography?
A response factor in chromatography is the ratio of peak area to analyte concentration. It quantifies how strongly a detector responds to a given compound and is used to back-calculate unknown concentrations from measured peak areas. The value is specific to the compound, detector type, and instrument configuration.
Why does the Response Factor differ between compounds?
Detectors do not respond uniformly to all molecules. A flame ionization detector (FID) responds based on the number of C-H bonds, so a branched alkane and a chlorinated compound of the same concentration will generate very different peak areas. A UV detector responds based on molar absorptivity at the measurement wavelength, so chromophore structure controls sensitivity. Because of this, an RF must be determined individually for each compound of interest on each detector used.
What is the difference between RF and RRF?
The absolute response factor (RF) directly relates peak area to concentration for a single compound. The relative response factor (RRF) compares the RF of one compound to another, typically an impurity compared to an API or analyte compared to an internal standard. RRF is preferred in pharmaceutical impurity testing when pure impurity reference standards are unavailable, as it allows impurity quantification using only the API standard.
How does an internal standard improve response factor accuracy?
An internal standard is a known compound added at a fixed concentration to both calibration standards and unknown samples before injection. Because it experiences the same injection variability, matrix effects, and detector drift as the analyte, the ratio of analyte-to-internal-standard peak areas remains stable even when absolute areas fluctuate. Studies consistently show that internal standard calibration methods produce lower relative standard deviation than external standard methods for the same number of injections.
When should I use a response factor versus a full calibration curve?
A single response factor assumes a perfectly linear relationship between peak area and concentration passing through the origin. This is valid only over a narrow, well-characterized concentration range. For wide concentration ranges or when the response is not linear at low or high ends, a multi-point calibration curve with R-squared of at least 0.999 is required. Regulatory methods, particularly those following USP, EP, or ICH guidelines, typically require a minimum of five calibration levels.
