Calculate slug volume in barrels or liters from the fluid-filled pipe length and a common drill pipe size or custom capacity, or solve length or capacity.
- All Physics Calculators
- Pipe Stretch Calculator
- Casing Capacity (Annular Volume) Calculator
- Formation Pressure Calculator
- EMW (Equivalent Mud Weight) Calculator
Slug Volume Formula and Calculator Guide
In drilling operations, a slug is a denser volume of mud pumped into the drillstring so fluid is pushed downward and the upper stands can be pulled drier during a trip. The default geometric modes find internal volume for a fluid-filled interval, or inverse length/capacity. Their entered length is not the dry-pipe length after hydrostatic displacement. The separate dry-length mode below uses mud and slug densities for an ideal hydrostatic estimate. Neither mode is a well-control procedure. ([glossary.slb.com](https://glossary.slb.com/terms/s/slug))
Weighted slug for a dry length
Select Slug for a dry length to estimate a weighted slug using original mud density, slug density, desired level drop and internal pipe capacity. The slug must be denser than the original mud. This secondary mode uses the hydrostatic relationships in the IADC WellSharp formula sheet (formulas 20–22).
Vslug = Ldry × C × ρmud / (ρslug − ρmud). Additional mud returned is Vslug × (ρslug / ρmud − 1), and total returned volume includes that additional volume plus Vslug. Divide additional returned volume by C to obtain the fluid-level drop.
For a 100 ft dry length, 0.02 bbl/ft capacity, 10 ppg mud and a 12 ppg slug, the estimated slug is 10 bbl. Additional returns are 2 bbl and total returns are 12 bbl. Actual pit changes depend on where the slug is drawn from and fluid transfers. The model assumes uniform vertical pipe, static hydrostatic balance and no influx or losses; verify pipe data and follow the approved operational program.
Core Slug Volume Equations
Use the main relationship below when slug pipe length and drill pipe capacity are known. The rearranged forms are useful when you need to solve for length or capacity instead of total volume. ([calculator.academy](https://calculator.academy/slug-volume-calculator/))
| Variable | Meaning | Common Units | What to Check |
|---|---|---|---|
| SLG | Slug volume | bbl or L | Total fluid volume required for the selected pipe interval |
| LS | Length of slug pipe | ft, m, in, cm | Use the actual length to be slugged, not the full string unless that is your intent |
| C | Drill pipe capacity | bbl/ft or L/m | Capacity is internal volume per unit length, so even small input errors affect the total |

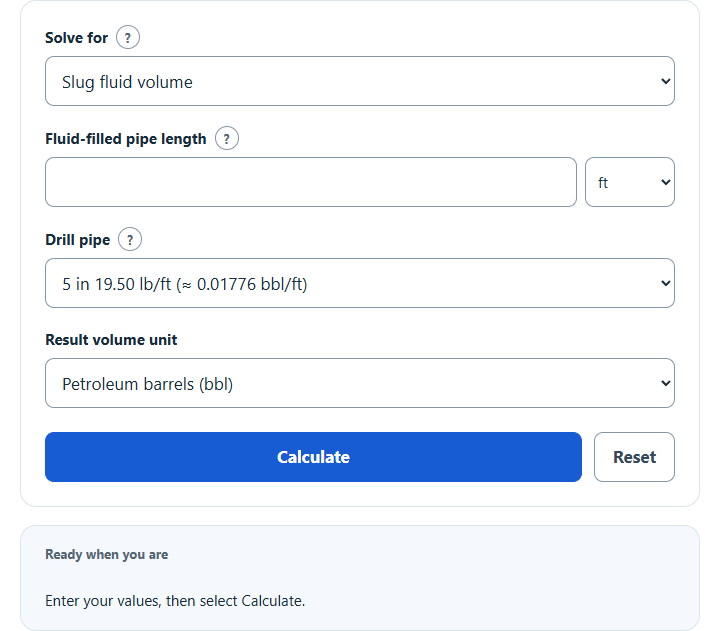

How to Use the Calculator
- Select the quantity to solve.
- Enter the two displayed known quantities and choose their units; for capacity, pick a common drill pipe size or choose Custom capacity.
- Choose the result unit and select Calculate.
- Verify that the pipe capacity and fluid-filled interval match the intended geometry.
The page supports length inputs in feet, meters, inches, or centimeters; capacity in barrels per foot or liters per meter; and outputs slug volume in barrels or liters. ([calculator.academy](https://calculator.academy/slug-volume-calculator/))
How the Inputs Affect the Result
- Slug volume increases linearly with length. Double the slugged length and the required volume doubles.
- Slug volume increases linearly with capacity. Larger internal capacity means more fluid per foot or per meter.
- Capacity is a rate of volume per length. That makes unit matching critical: feet pair naturally with bbl/ft, while meters pair naturally with L/m.
Unit Conversions
In petroleum practice, one barrel is customarily 42 U.S. gallons, which is 158.987 liters and about 5.6146 cubic feet. These conversions are useful when a slug program is planned in one unit system but reported in another. ([nist.gov](https://www.nist.gov/system/files/documents/2017/05/09/hb133-14-final-web.pdf))
Quick conversion checks:
- If your answer is in bbl and operations need L, multiply by 158.987.
- If your answer is in L and reporting needs bbl, divide by 158.987.
- The calculator converts mixed units automatically; select each input’s actual unit correctly.
If Drill Pipe Capacity Is Unknown
When the pipe capacity is not already listed on a tally or specification sheet, you can estimate internal capacity from the pipe inside diameter by modeling the bore as a cylinder. These are geometric estimates of open internal volume.
Use inches in the first equation and millimeters in the second. After estimating capacity, multiply it by the slugged length to obtain total slug volume.
Example
If 500 ft of pipe has an internal capacity of 0.0178 bbl/ft, the required slug volume is:
To express the same result in liters:
Common Input Mistakes
- Using the wrong capacity value: internal pipe capacity is not the same as annular capacity.
- Mixing unit systems: a metric length with field capacity units will distort the answer unless converted.
- Using total string length by accident: only enter the section you actually intend to slug.
- Rounding capacity too aggressively: small capacity changes multiplied over long lengths can create a noticeable volume error.
- Forgetting the calculator can back-solve: if you know the desired slug volume and pipe capacity, use those to solve for required slugged length.
Practical Interpretation
The result tells you how much fluid volume is associated with the selected slugged interval inside the drill pipe. Operationally, that means the answer is only as good as the pipe length and capacity entered. Accurate length selection, correct internal capacity, and consistent units are the three biggest drivers of a reliable slug volume calculation.
Quick Questions
- Can I calculate slugged length instead of slug volume?
- Yes. If total slug volume and drill pipe capacity are known, divide the volume by the capacity to find the required slugged length.
- Can I use metric units throughout?
- Yes. Using meters for length and liters per meter for capacity keeps the calculation straightforward and avoids extra conversion steps.
- Why does the result sometimes seem small?
- Drill pipe capacity is usually a fraction of a barrel per foot, so even hundreds of feet may correspond to a moderate barrel total.
- What is the fastest reasonableness check?
- Estimate mentally: length times capacity should scale directly. If either input doubles, the slug volume should also double.
