Smith Machine Squat to Free Weight Squat Calculator

Last Updated: October 23, 2026

Convert a Smith machine squat to an estimated free-weight squat, or back, using a transfer factor you choose plus optional counterbalance and rail angle.

Plates plus unadjusted bar/carriage mass, not plate load alone.

Free-weight load รท ideal Smith resistance. No research-backed universal value exists; 1 means equal loads.

Machine and sensitivity assumptions
Blank assumes 0. This offset is not the machineโ€™s net starting resistance; do not subtract an offset already included in your load.

Blank assumes vertical rails (0ยฐ). Use the actual machine specification.

Optional: enter both factor bounds. They describe your assumptions, not a confidence interval.

Safety note: Squat scenarios are not 1RM predictions, and study-based bench estimates are not personal performance guarantees. None of these results establishes a safe working weight. Do not choose an attempt from a result. Follow the machine manufacturerโ€™s setup guidance and use appropriate safeties or a spotter. For pain, injury or health concerns, seek qualified assessment.

Smith Machine Squat to Free Weight Squat Conversion Formula

The following ideal, frictionless model projects net Smith-machine load along rails angled from vertical, then applies a user-chosen factor. It does not model total muscle force, technique, friction or an individualโ€™s strength transfer. No universal factor is established; 0.85 below is an illustrative assumption.

FW = (L - C) cos(ฮธ) f

Variables:

  • FW is the scenario free-weight squat load, in the selected weight unit.
  • L is the loaded Smith-machine mass: plates plus the unadjusted bar/carriage mass, in the same unit.
  • C is the mass-equivalent counterbalance offset before rail projection. Do not subtract counterbalance again from a manufacturerโ€™s already net effective starting resistance.
  • ฮธ is the rail angle from vertical, and f is the user-chosen ratio of scenario free-weight load to ideal effective Smith resistance.

First calculate ideal effective Smith resistance as (L โˆ’ C) ร— cos ฮธ, then multiply by f. In reverse, the loaded Smith-machine mass is L = FW รท (f ร— cos ฮธ) + C. This assumes the counterbalance offset is defined before projection and ignores friction.

Illustrative scenario: f = 0.85, C = 0, vertical rails
Smith Machine Squat Weight (kg or lbs) Free Weight Squat Weight (kg or lbs)
2017.0
3025.5
4034.0
5042.5
6051.0
7059.5
8068.0
9076.5
10085.0
11093.5
120102.0
130110.5
140119.0
150127.5
160136.0
170144.5
180153.0
190161.5
200170.0
210178.5
Illustrative arithmetic only: FW = 0.85 ร— L when C = 0 and the rails are vertical. Use the same unit on both sides (kg or lb). These values do not establish a strength-conversion ratio or a safe training load.

Bench-press estimates from a study relation

The two bench modes use the Cotterman, Darby and Skelly (2005) relation: SM = 0.95 ร— FW โˆ’ 6.76, with both 1-rep maximum loads in kilograms. Smith-to-free uses the algebraic rearrangement FW = (SM + 6.76) รท 0.95; it is not a separately fitted reverse prediction. The free-to-Smith result must be positive. Pounds are converted to kilograms before using the intercept, then converted to the selected result unit.

The study tested 16 men and 16 women aged 18โ€“25 on one vertical Smith machine. Its reported Smith-bench prediction error was 4.6 kg, which is not a personal error bound or a validated inverse-prediction interval. Use a known 1RM; the calculator does not ask you to test a maximum, predict a safe attempt or apply the squat modelโ€™s factor, angle or counterbalance corrections to this relation.

How do I count plates and Smith starting resistance?

Select Smith load: plates plus start, enter the total plates on both sides and choose the exact machine or enter its stated unloaded starting resistance. The logged total is plates + starting resistance. The manufacturerโ€™s Life Fitness Signature SSM starting figure is 20 lb, and the Hammer Strength HSSM starting figure is 30 lb. The presets use these pound figures; manufacturer metric equivalents may be rounded. Check the installed model and version rather than assuming every Smith machine has the same bar weight.

Starting resistance can already account for a counterbalance and may differ from physical bar/carriage mass. Do not subtract counterbalance again. This logging total is separate from the squat modelโ€™s unadjusted loaded mass L and does not establish a free-weight equivalent.

Why is there no research-based default squat factor?

A study average does not establish a universal personal conversion ratio. Cotterman and colleagues found that the squat relationship differed by participant group; its women-only equation included an additive intercept rather than a constant ratio, and it did not provide a male squat regression. Later muscle-activation comparisons do not turn activation percentages into load-conversion factors. The squat modes therefore retain a factor you choose, with optional assumption ranges rather than a claimed research default.

What is the Smith Machine Squat to Free Weight Squat Conversion?

This tool explores the consequences of selected machine and transfer assumptions. It does not establish how an individualโ€™s Smith-machine performance transfers to a free-weight squat. Machine design, movement technique and range of motion differ, so a calculated scenario is not a tested personal equivalent.

How to Calculate the Free Weight Equivalent?

Follow these steps to calculate your free weight squat estimate:


  1. Determine L as plates plus the unadjusted Smith bar/carriage mass. Identify the counterbalance offset C separately; do not deduct it twice if the manufacturer already reports a net effective starting resistance.
  2. For a Smith-to-free scenario, calculate (L โˆ’ C) ร— cos ฮธ, then multiply by the factor f you have chosen.
  3. For a free-to-Smith scenario, calculate L = FW รท (f ร— cos ฮธ) + C using the same assumptions.
  4. Treat the result as a scenario for comparison, not as a prescribed attempt or a safe training load.

Example Problem:

For an illustrative loaded Smith mass of 200 pounds, factor f = 0.85, zero counterbalance offset and vertical rails, the scenario is:

FW = 200 ร— 0.85 = 170 pounds

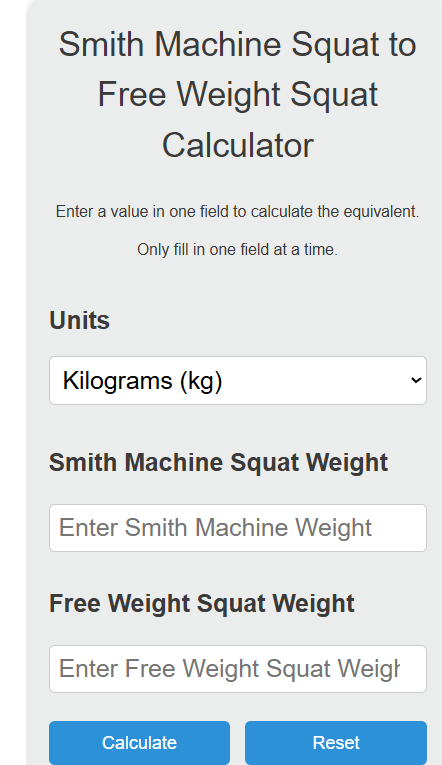

Smith Machine Squat to Free Weight Squat Calculator screenshot
