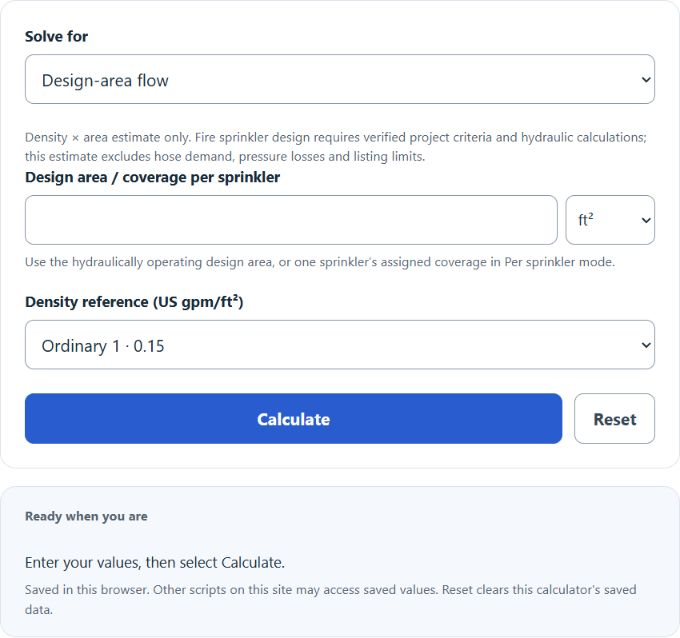

Estimate fire sprinkler density-based flow for a design area or one sprinkler’s assigned coverage, in US gpm, L/min and L/s. This arithmetic estimate does not replace project-specific hydraulic design.

Density × area estimate only. Fire sprinkler design requires verified project criteria and hydraulic calculations; this estimate excludes hose demand, pressure losses and listing limits.

Use the hydraulically operating design area, or one sprinkler’s assigned coverage in Per sprinkler mode.

Related Calculators

Sprinkler Flow Rate Formula

SFR = CA × FD

Variables:

  • SFR is the density-based sprinkler flow (US gpm)
  • CA is the coverage area (ft^2)
  • FD is the specified discharge density (US gpm/ft²)

Multiply the hydraulically operating design area, or one sprinkler’s assigned coverage, by the specified discharge density. Reference hazard densities are starting values, not automatic occupancy classifications or complete supply-demand calculations.

How to Calculate Sprinkler Flow Rate?

The following steps outline how to calculate the Sprinkler Flow Rate.

  1. First, determine the coverage area (ft^2).
  2. Next, determine the flow density.
  3. Next, gather the formula from above = SFR = CA * FD.
  4. Finally, calculate the Sprinkler Flow Rate.
  5. After inserting the variables and calculating the result, check your answer with the calculator above.

Example Problem :

Use the following variables as an example problem to test your knowledge.

coverage area (ft^2) = 580

flow density = 0.15 US gpm/ft²; density-based flow = 580 × 0.15 = 87 US gpm. This is an arithmetic example, not an approved design area.

FAQ

What is flow density in the context of sprinkler systems?

Discharge density is flow per unit area, commonly US gpm/ft² or L/min/m². Fire sprinkler density and design area must come from the applicable project criteria and adopted standard.

How do I measure the coverage area for my sprinkler system?

For design-area flow, use the hydraulically operating design area specified by the fire protection design, not the entire building by default. For per-sprinkler flow, use that sprinkler’s assigned coverage and verify spacing and listing limits.

Why is it important to calculate the Sprinkler Flow Rate accurately?

The density-area product estimates a fire sprinkler discharge component. Complete supply demand also depends on required sprinkler pressure, pipe losses, elevation and hose allowance; qualified fire protection design is required.

Can I use the Sprinkler Flow Rate formula for any type of sprinkler system?

Q = A × D is dimensionally valid when density is a flow per area. This calculator’s hazard references concern fire sprinklers, not lawn irrigation. Residential, storage, high-ceiling and special sprinkler applications may require different criteria; verify the adopted standard and sprinkler listing.
