Calculate stiffness coefficient k = F/x from force and displacement, or find spring, beam, column, axial and torsional stiffness from geometry.

Use force and displacement magnitudes measured from the unloaded reference.

Optional settings

Stiffness Coefficient Formula

s = F / d

Variables:

  • s is the Stiffness Coefficient (N/m)
  • F is the force on the body (N)
  • d is the displacement (m)

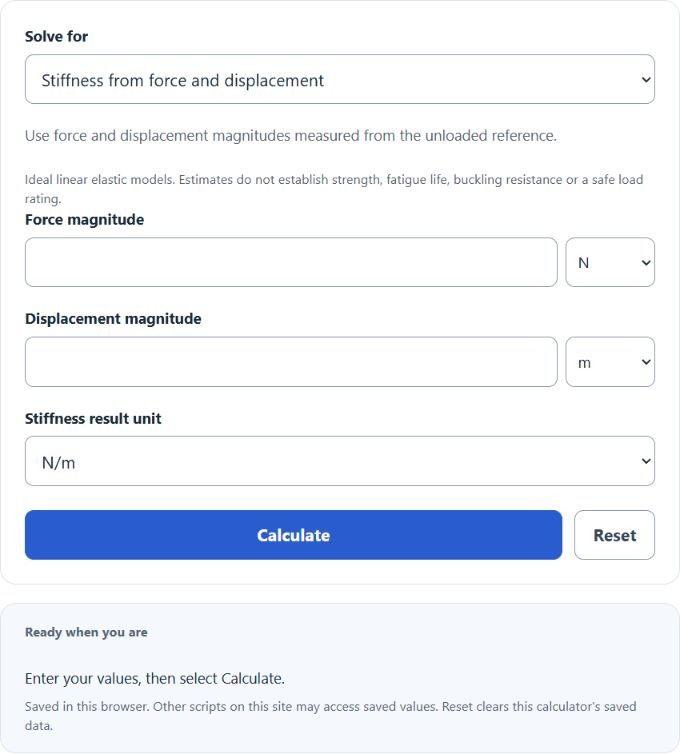

To calculate Stiffness Coefficient, select stiffness from force and displacement, enter their magnitudes with consistent units, then select Calculate. This gives the force-to-displacement ratio relative to an unloaded reference; linear stiffness is assumed. The other solve choices cover force, displacement, equivalent springs, undamped frequency, energy, axial members, beam bending, torsion and close-coiled round-wire compression springs. These estimates do not establish a safe load rating.

How to Calculate Stiffness Coefficient?

The following steps outline how to calculate the Stiffness Coefficient.


  1. First, determine the force on the body (N).
  2. Next, determine the displacement (m).
  3. Next, gather the formula from above: s = F / d.
  4. Finally, calculate the Stiffness Coefficient.
  5. After inserting the variables and calculating the result, check your answer with the calculator above.

Example Problem :

Use the following variables as an example problem to test your knowledge.

force on the body (N) = 478

displacement (m) = 902

FAQs about Stiffness Coefficient

How is pile spring stiffness calculated?

For a measured or modeled pile-head load and movement in one direction, the secant spring stiffness is k = F/d: load divided by displacement from the unloaded reference. Use the calculator’s force-and-displacement mode with matching axial load and settlement, or matching lateral load and lateral movement. This gives the stiffness at that load level; it does not predict the movement from pile dimensions.

Predicting a pile’s response requires the soil profile, pile properties and loading conditions. Axial models can combine shaft t-z and tip Q-z load-transfer curves with pile compression. Lateral models commonly use depth-dependent p-y soil-reaction curves and the pile-head restraint. These responses may be nonlinear, so secant stiffness F/d and tangent stiffness dF/dd can differ.

The axial-member expression EA/L describes the pile material’s compression under the assumed constant axial force, not the complete soil-pile stiffness. Use project-specific load-test data or a suitable geotechnical analysis when selecting a foundation spring.

What is the significance of the Stiffness Coefficient in engineering?
The Stiffness Coefficient is a critical parameter in engineering that measures the resistance of a material or structure to deformation under applied force. It is essential for designing buildings, bridges, and mechanical parts to ensure they can withstand loads without excessive bending or breaking.

How does the Stiffness Coefficient affect the performance of a material or structure?
A higher Stiffness Coefficient indicates that a material or structure is more resistant to deformation under load, meaning it will bend or stretch less when a force is applied. This is crucial for materials and structures that must maintain their shape under stress, such as in aerospace and automotive industries.

Can the Stiffness Coefficient change over time?
Yes, the Stiffness Coefficient of a material or structure can change over time due to factors such as wear, fatigue, or environmental conditions. Regular monitoring and maintenance are important to ensure that the stiffness remains at a safe level.

Is the Stiffness Coefficient the same in all directions?
No, the Stiffness Coefficient can vary depending on the direction of the applied force. This is particularly true for anisotropic materials, whose properties differ along different axes. Engineers must consider these variations when designing components to ensure they can handle loads from all directions.
