Calculate valve spring rate, lift, seat load and open load, and compare coil bind clearance with your spring manufacturer’s required clearance.
- All Automotive Calculators
- Spring Constant Calculator (F=-kx)
- Valve Spring Pressure Calculator
- Valve Lift Calculator
Valve Spring Rate Formula
The valve spring rate describes how quickly spring load increases as the spring is compressed through the valve lift range. In practical engine setup, it connects the closed-load condition at the seat to the load seen at full lift.
Where:
- VSR = valve spring rate
- OP = open spring force at maximum lift (lbf or N)
- SP = seat spring force with the valve closed (lbf or N)
- L = lift over which the load change is measured
Even though the terms seat pressure and open pressure are commonly used, these values are forces (lbf or N), not pressures (psi or bar), at two different spring heights. The result is typically expressed in lb/in or N/mm and is best understood as the spring's effective rate across the measured interval.
Rearranged Forms
If you know any three values, the missing one can be solved directly:
Key Terms to Understand
| Term | Meaning | Why It Matters |
|---|---|---|
| Seat pressure/load | Spring load with the valve fully closed | Helps keep the valve seated and controls the start of valve motion |
| Open pressure/load | Spring load at maximum lift | Important for high-rpm valve control and resistance to float |
| Valve spring rate | Load added per unit of compression | Shows how aggressively spring load rises as lift increases |
| Installed height | Spring height after installation, before additional valve lift compression | Changes preload and directly affects seat load |
| Open height | Spring height at full valve lift | Used to verify remaining travel before coil bind |
| Coil bind height | Height where the coils stack solid | The spring must stay above this height at maximum lift |

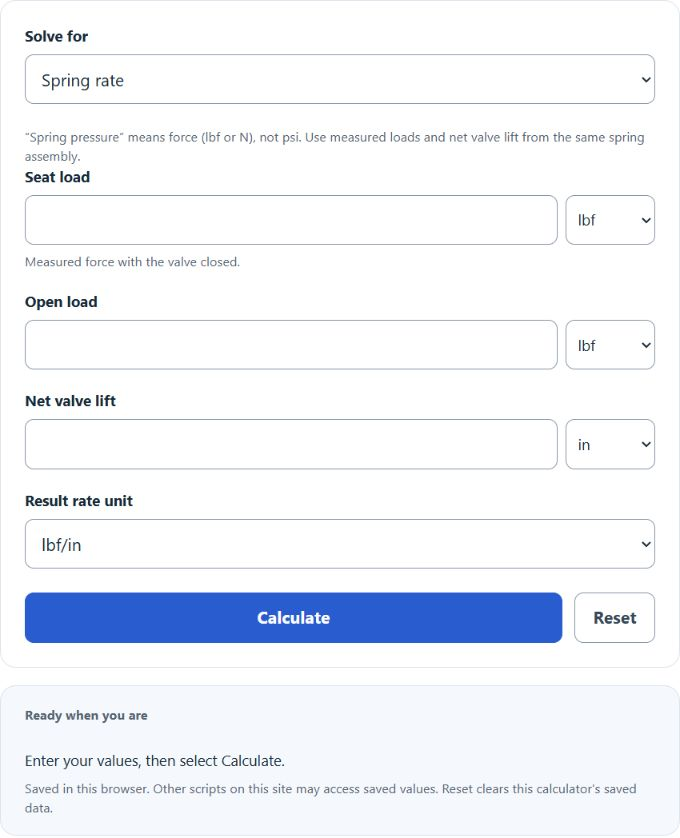

How to Use the Calculator
- Select spring rate, open load, seat load, valve lift, or the installed-height and coil-bind check.
- Enter the requested measured loads in lbf or N. Pressure units such as psi or bar are not force units and are not accepted.
- Choose the correct length and rate units; the calculator converts quantities when units change.
- For coil bind, enter installed height, net valve lift, coil bind height and the manufacturer’s required clearance. Optionally enter both measured seat load and spring rate to estimate open load.
For a normal setup, the open value should be greater than the seat value, and lift should be greater than zero. If those relationships are not true, the input set is not valid for a standard spring-rate calculation.
Example
If a spring has a seat load of 50 lbf, an open load of 100 lbf, and a measured lift of 0.456 in, the effective rate is:
This means the spring gains about 109.65 lb of load for every inch of additional compression over that lift range.
What the Result Means
- Higher spring rate: load rises faster with lift, which can improve valve control at higher engine speed.
- Lower spring rate: load rises more gradually, which can reduce valvetrain stress, but may provide less control with aggressive cam profiles or higher rpm.
- Similar seat load does not guarantee similar behavior: two springs can start with comparable seat load yet gain load at very different rates.
Because real springs are not always perfectly linear, this calculation should be treated as the average or effective rate between the two measured points unless a full spring test curve is available.
Install Height and Coil Bind Checks
The coil-bind check calculates open height and clearance, then compares it with the manufacturer’s requirement you enter. It does not certify valvetrain safety. Installed height is not the unloaded spring length; dimensions alone do not determine seat preload. Enter both measured seat load and spring rate for an optional open-load estimate.
Those relationships are useful for quick checks:
- Open height tells you where the spring will operate at maximum lift.
- Clearance to coil bind tells you how much travel remains before the spring stacks solid.
- Height change vs. load change shows how a small change in installed height changes spring load by the spring rate multiplied by the height difference.
If the actual closed height is shorter than the target installed height, the spring is already compressed more at rest, so seat load increases. If the actual closed height is taller, seat load decreases.
Measurement Tips
- Use measured values from the same spring and test setup whenever possible.
- Use net valve lift for the actual running condition, not just cam lobe lift.
- Verify retainer, locator, shim, and lock stack-up when checking installed height.
- Do not rely on spring rate alone; adequate open load and safe coil-bind clearance both matter.
- For dual springs, evaluate the complete assembly as installed, not just one spring in isolation.
Common Questions
- Is valve spring rate the same as seat pressure?
- No. Seat pressure is the load at the closed position. Spring rate is how much additional load is added for each unit of compression.
- Why does installed height matter so much?
- Installed height sets the spring's starting compression. A small height change can noticeably increase or decrease seat load.
- Why check coil bind if the spring rate already looks correct?
- A correct spring rate does not guarantee enough travel. The spring still needs safe clearance at full lift so it does not approach solid height.
