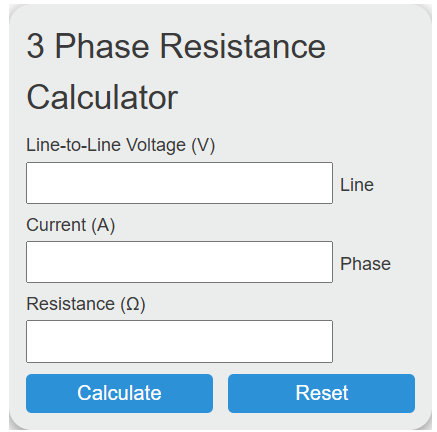

Calculate 3 phase resistance per branch for a balanced wye or delta resistive load from line voltage and current or kW, or find line current.
Related Calculators
- Phase Angle Calculator
- Phase To Neutral Voltage Calculator
- Ohms Per Foot Calculator
- Time Domain To Phasor Calculator
- All Physics Calculators

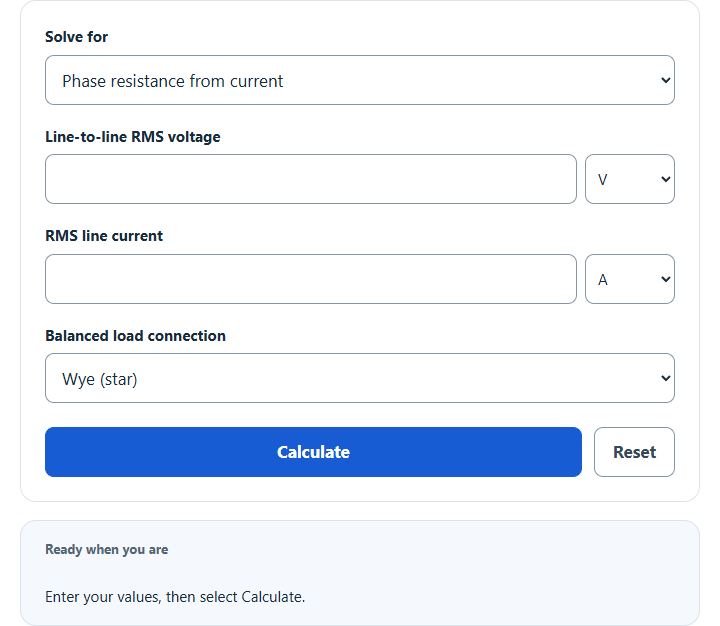

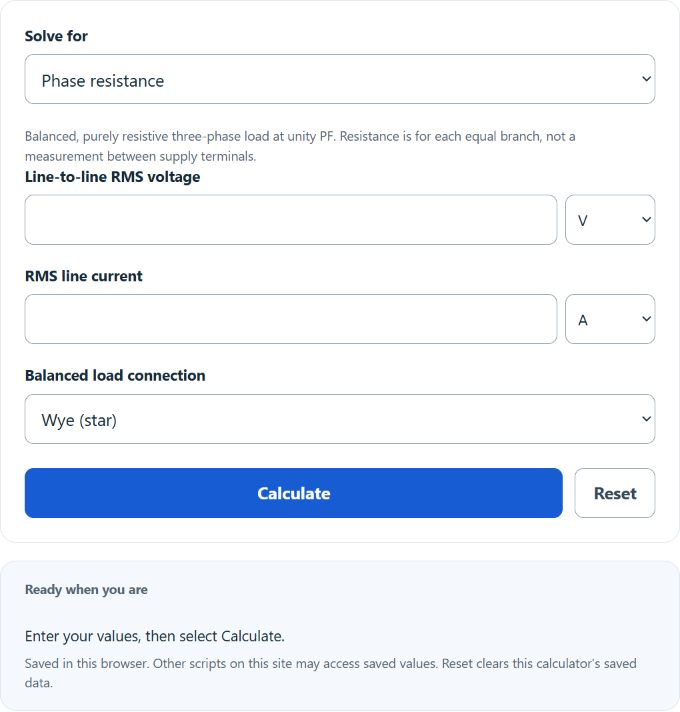

Calculator Functions
| Function | What it does | What it requires |
|---|---|---|
| Phase resistance from current | Finds the resistance of each branch of a balanced three-phase load from a measured line current | Requires the line-to-line RMS voltage, the RMS line current and the load connection |
| Phase resistance from power | Finds the resistance of each branch from the load’s total power rating | Requires the line-to-line RMS voltage, the total load power and the load connection |
| Line current | Finds the current each supply line carries | Requires the line-to-line RMS voltage, the resistance of each equal branch and the load connection |
The load connection is Wye (star) or Delta, and the three branches are taken as equal. Voltage can be entered in V or kV, current in A or kA, power in W, kW or MW and resistance in Ω or kΩ. Each result also lists the phase voltage, phase current, total resistive power in kW and the branch resistance of the equivalent load in the other connection.
3-Phase Resistance Formulas
| R | Resistance of each equal branch of a wye load (Ω) |
| V | Line-to-line RMS voltage (V) |
| I | RMS line current (A) |
Branch resistance is the voltage across one branch divided by the current through it. In a balanced wye load each branch sees the line voltage divided by √3 and carries the full line current [1], which gives the formula above.
Phase resistance from current
In a balanced delta load each branch sees the full line voltage and carries the line current divided by √3 [1]. At 400 V and 10 A, a wye load has 400 ÷ (1.732 × 10) = 23.094 Ω per branch and a delta load has 1.732 × 400 ÷ 10 = 69.282 Ω. The delta value is always three times the wye value for the same line voltage and current.
Phase resistance from power
For a resistive load the power factor is 1, so total power is √3 × V × I [1] and the line current follows from the rating. The branch resistance is then V² ÷ P for wye and 3 × V² ÷ P for delta. A 10 kW heater on 480 V draws 12.03 A, with 23.04 Ω per branch in wye or 69.12 Ω in delta.
Line current
Delta: I = √3 × V ÷ R
Three 23.094 Ω branches in wye on 400 V draw 10 A per line. Three 69.282 Ω branches in delta on the same supply also draw 10 A.
Limits of This Estimate
- The load must be balanced and purely resistive, such as heater elements. Motor windings and other loads with reactance need an impedance calculation instead.
- R is the resistance of one branch at operating temperature. An ohmmeter reading between two terminals of a connected load is a different number: 2 × R for wye and two thirds of R for delta.
- The result does not size conductors, fuses or breakers.
Sources
- U.S. Department of Energy, Fundamentals Handbook: Electrical Science, Volume 3 (DOE-HDBK-1011/3-92): line and phase relationships in balanced wye and delta loads, and three-phase power
