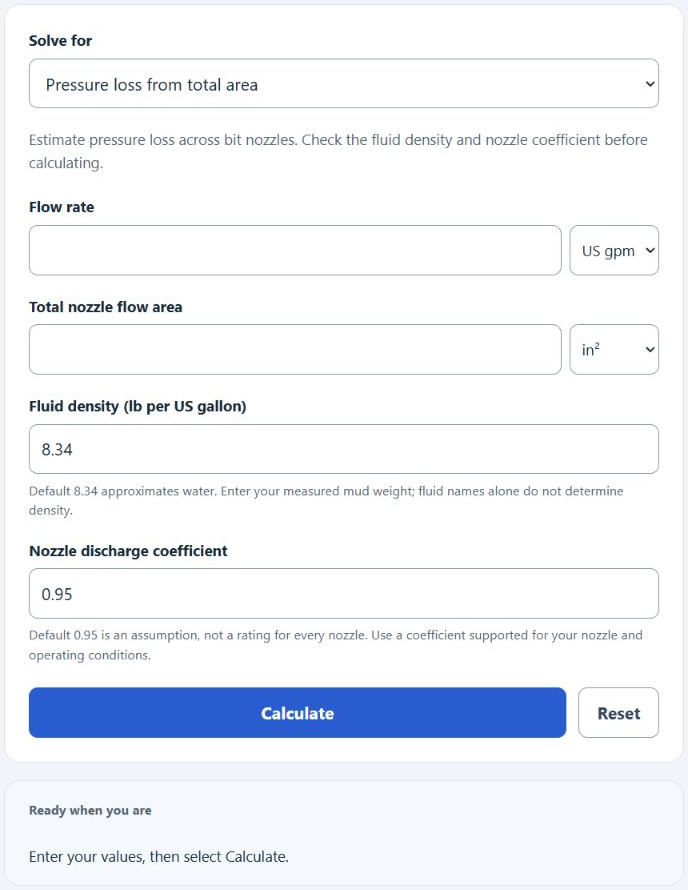

Calculate bit pressure loss from flow rate, nozzle area or nozzle sizes, with jet velocity, hydraulic horsepower and impact force outputs.

Estimate pressure loss across bit nozzles. Check the fluid density and nozzle coefficient before calculating.

Default 8.34 approximates water. Enter your measured mud weight; fluid names alone do not determine density.

Default 0.95 is an assumption, not a rating for every nozzle. Use a coefficient supported for your nozzle and operating conditions.

Related Calculators

Bit Pressure Loss Formula

The following oilfield-unit formula is commonly used to estimate pressure loss across the bit nozzles from flow rate and total nozzle flow area (TFA).

P = (MW ร— Qยฒ) / (12028 ร— Cdยฒ ร— Aยฒ)

Variables:

  • P is the pressure loss across the bit nozzles in psi
  • MW is the mud weight (fluid density) in pounds per gallon (ppg)
  • Q is the flow rate in gallons per minute (gpm)
  • Cd is the nozzle discharge coefficient (dimensionless)
  • A is the total bit nozzle flow area (TFA) in square inches (inยฒ)

To calculate the pressure loss, square the flow rate, multiply by mud weight, then divide by 12028 ร— Cdยฒ ร— Aยฒ. (For the editable defaults, MW = 8.34 ppg and Cd = 0.95.)

What is Bit Pressure Loss?

Bit pressure loss refers to the reduction in pressure that occurs when fluid flows through the bit nozzles of a drilling rig. This loss is a critical factor in drilling operations as it affects the efficiency of the drilling process and the ability to remove cuttings from the wellbore. The pressure loss is influenced by the flow rate of the fluid, the size of the bit nozzles, and the properties of the drilling fluid. Understanding and calculating bit pressure loss supports drilling analysis but does not establish safe operating limits. This estimate excludes drill-string and annular losses.

How to Calculate Bit Pressure Loss?

The following steps outline how to calculate the Bit Pressure Loss.

  1. First, determine the flow rate (Q) in gallons per minute (gpm).
  2. Next, determine the total bit nozzle flow area (A, TFA) in square inches (inยฒ).
  3. Determine mud weight (MW, ppg) and the discharge coefficient (Cd).
  4. Next, calculate the pressure loss using the formula P = (MW ยท Qยฒ) / (12028 ยท Cdยฒ ยท Aยฒ).
  5. After inserting the values and calculating the result, check your answer with the calculator above.

Example Problem :

Use the following variables as an example problem to test your knowledge.

Flow Rate (Q) = 100 gpm

Total Bit Nozzle Area (A, TFA) = 0.5 inยฒ

Using the default assumptions (MW = 8.34 ppg and Cd = 0.95), the estimated bit pressure loss is about 30.7 psi.
