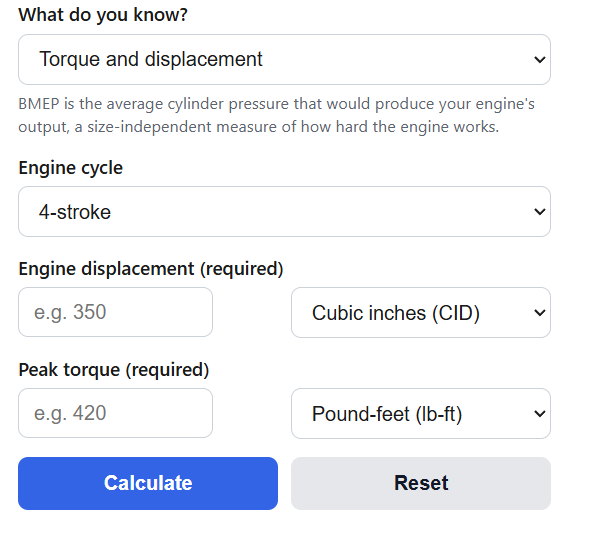

Calculate brake mean effective pressure (BMEP) from torque and displacement, or from horsepower and RPM, with results in psi, bar, and kPa plus benchmarks.
BMEP Formula
Brake mean effective pressure is the constant average pressure that, if applied to the pistons through every power stroke, would produce the engine’s measured torque. For a 4-stroke engine working in US units:
BMEP = (150.8 * T) / CID
If you know power instead of torque, the calculator first derives torque from the standard relationship, then applies the formula above:
T = (5252 * HP) / RPM
Variables:
- BMEP is the brake mean effective pressure, in psi (the calculator also reports bar and kPa)
- T is the brake torque, in lb-ft (Nm accepted and converted)
- CID is the engine displacement in cubic inches (liters and cc accepted)
- 150.8 is the 4-stroke constant (4Ï€ converted to US units); a 2-stroke engine fires every revolution, so its constant is half that, 75.4
- HP and RPM are the brake horsepower and the engine speed where it is produced
In metric units the equivalent 4-stroke relationship is BMEP (kPa) = 12.566 * T (Nm) / V (L). Because BMEP divides torque by displacement, it removes engine size from the comparison: a 2.0L four-cylinder and a 7.0L V8 at the same BMEP are working their cylinders equally hard, even though their torque outputs differ by a factor of 3.5.
Typical BMEP Values by Engine Type
This table shows typical peak BMEP ranges for common 4-stroke engine types. Use it to judge whether a claimed torque figure is realistic for an engine’s size and technology.
| Engine type | Typical peak BMEP (psi) | Typical peak BMEP (bar) |
|---|---|---|
| Older NA street engine | 125 – 150 | 8.5 – 10.5 |
| Modern NA street engine | 145 – 190 | 10 – 13 |
| NA race engine | 200 – 230 | 14 – 16 |
| Turbocharged gasoline engine | 175 – 250 | 12 – 17 |
| Turbo-diesel engine | 200 – 290 | 14 – 20 |
Example Problems
Example 1: BMEP from torque and displacement.
A 6.2L (376 CID) V8 makes 420 lb-ft of torque. Applying the formula:
BMEP = (150.8 * 420) / 376 = 168.4 psi, or about 11.6 bar — right in the range of a modern naturally aspirated street engine.
Example 2: BMEP from power and RPM.
A 350 CID race engine makes 500 hp at 6,500 RPM. First find torque: T = (5252 * 500) / 6500 = 404 lb-ft. Then:
BMEP = (150.8 * 404) / 350 = 174.1 psi (12.0 bar). To reach a 220 psi race-engine figure, this engine would need about 510 lb-ft from the same displacement.
Frequently Asked Questions
What is a good BMEP number?
For a naturally aspirated 4-stroke gasoline engine, anything above about 150 psi (10.5 bar) indicates healthy, modern levels of cylinder filling and combustion, and 200+ psi is race-engine territory. Boosted engines routinely exceed 250 psi because the turbo or supercharger raises the mass of air in each cylinder. If a claimed NA engine works out far above 230 psi, the torque or displacement figure is probably wrong.
Why use BMEP instead of just torque or horsepower?
Torque scales with displacement, so raw figures say more about engine size than engine quality. BMEP normalizes that away, which makes it the standard yardstick engineers use to compare combustion and breathing efficiency across different engines, or to sanity-check dyno claims. It is also directly linked to the mechanical and thermal loads the pistons, rods, and head gaskets must survive.
Is BMEP a real pressure inside the cylinder?
No. Peak cylinder pressures during combustion are far higher — often 5 to 10 times the BMEP. BMEP is a calculated average: the steady pressure that would do the same work over the full power stroke as the real, constantly changing cylinder pressure. That is what makes it useful as a single comparable number rather than a measurement of any instant in the cycle.
