Calculate dryer capacity from drum radius and depth, with an estimated dry-load weight, or find the drum size a laundry load needs at typical loading.

Measure inside the drum. The dry-load estimate uses the loading assumption below.

Half the internal drum diameter.

Loading assumptions
Commercial tumble dryers are commonly sized at 1 kg of dry laundry per 20–25 L of drum. Your model’s rated load governs.

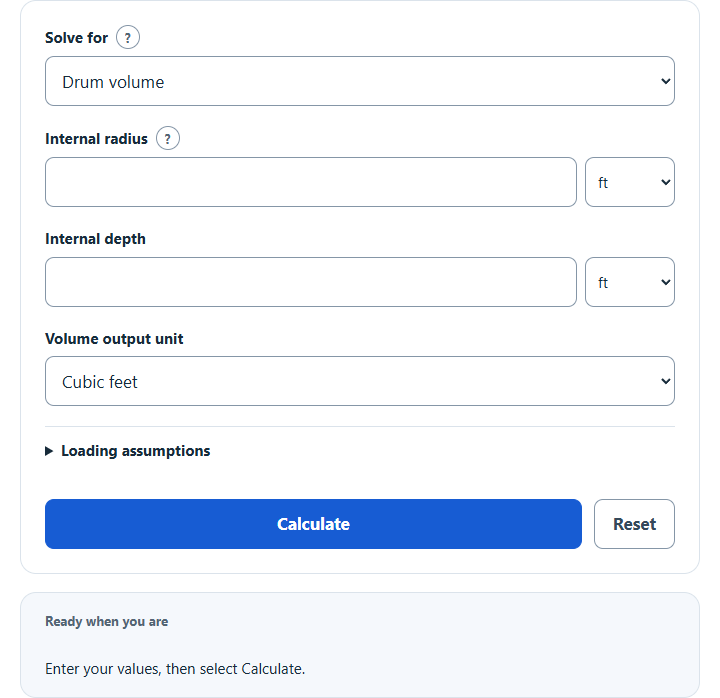

Calculator Functions

FunctionWhat it doesWhat it requires
Drum volumeFinds the volume of a dryer drum as a cylinder, in ft³, m³, L or US gallons, with an estimated dry-load capacityRequires the internal radius and the internal depth of the drum
Drum radiusFinds the internal radius of a drum of known volumeRequires the cylinder volume and the internal depth
Drum depthFinds the internal depth of a drum of known volumeRequires the cylinder volume and the internal radius
Size from dry laundry weightEstimates the drum volume a dry load needs, as a midpoint and a rangeRequires the dry laundry weight in lb or kg

Lengths are entered in ft, m, in or cm. The loading assumption is 1 kg of dry laundry per 20 to 25 L of drum, which is about 2.5 to 3.1 lb per cubic foot. Custom load factors replace it with a lower and an upper figure in lb/ft³.

Dryer Capacity Formulas

V = π × r² × d [1]
VDrum volume (ft³ when r and d are in feet)
rInternal radius, half the internal diameter
dInternal depth, front to back

A dryer drum is treated as a plain cylinder, the same way the laundry trade works out cage volume [1]. The space taken by baffles is not subtracted.

Drum volume

The formula above applies directly. A drum with a 1.5 ft radius and a 2 ft depth holds π × 1.5² × 2 = 14.1372 ft³, which is 400.3 L. At 1 kg per 20 to 25 L that drum suits a dry load of about 16.0 to 20.0 kg, or 35.3 to 44.1 lb.

Drum radius

r = √(V ÷ (π × d))

A 14.1372 ft³ drum that is 2 ft deep has a radius of √(14.1372 ÷ (π × 2)) = 1.5 ft.

Drum depth

d = V ÷ (π × r²)

A 14.1372 ft³ drum with a 1.5 ft radius is 14.1372 ÷ (π × 1.5²) = 2 ft deep.

Size from dry laundry weight

V = W ÷ load factor

W is the dry weight in pounds. Commercial tumble dryers are built at drum ratios of 1:20 and 1:25, meaning 20 or 25 L of drum for each kilogram of dry laundry [1]. Those ratios are load factors of 3.12 and 2.50 lb/ft³. The range runs from the weight divided by the upper factor to the weight divided by the lower one, and the headline answer uses their average, 2.81 lb/ft³. A 20 lb load needs 20 ÷ 2.81 = 7.1193 ft³, within a range of 6.41 to 8.01 ft³. An 8 kg load needs 6.2782 ft³.

Limits of This Estimate

  • The 1:20 and 1:25 ratios come from commercial laundry practice for cotton loads. Synthetic and blended fabrics are dried at much lighter loadings. These estimates are based on the best available data and estimations.
  • A manufacturer’s rated capacity is a dry-load weight under stated conditions, and bulky items can fill the drum before reaching it [2]. The rating on the machine comes first.
  • The volume is that of a perfect cylinder. It is not the capacity figure printed on a household dryer, which the maker measures in its own way.

Sources

  1. Clean India Journal, Calculating Loads: cage volume as a cylinder and dryer drum ratios of 1:20 and 1:25
  2. Electrolux Professional, Commercial Tumble Dryer Capacity and Throughput Explained: rated capacity as a dry-load weight
