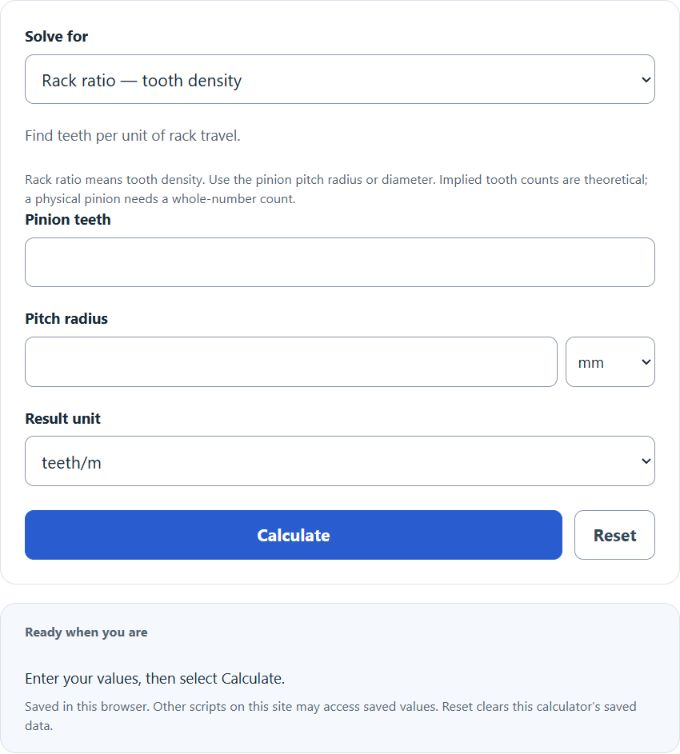

Calculate rack and pinion gear ratio as rack tooth density, plus module or diametral pitch and rack speed from pinion teeth, pitch diameter or RPM.

Optional settings


Related Calculators

Calculator Functions

FunctionWhat it doesWhat it requires
Rack ratio โ€” tooth densityFinds the rack tooth density from the pinionRequires pinion teeth and pitch radius
Rack ratio โ€” implied teethFinds the pinion tooth count that fits a rack tooth density and pitch radiusRequires rack tooth density and pitch radius
Rack ratio โ€” pitch radiusFinds the pinion pitch radiusRequires rack tooth density and pinion teeth
Metric pitch โ€” moduleFinds the metric module of a pinionRequires pitch diameter and pinion teeth
Metric pitch โ€” implied teethFinds the tooth count from a moduleRequires pitch diameter and module in mm
Metric pitch โ€” diameterFinds the pitch diameter from a moduleRequires module in mm and pinion teeth
Imperial pitch โ€” diametral pitchFinds the diametral pitch of a pinionRequires pitch diameter and pinion teeth
Imperial pitch โ€” implied teethFinds the tooth count from a diametral pitchRequires pitch diameter and diametral pitch
Imperial pitch โ€” diameterFinds the pitch diameter from a diametral pitchRequires diametral pitch and pinion teeth
Motion โ€” rack speedFinds how fast the rack movesRequires rack tooth density, pinion teeth and pinion speed in RPM
Motion โ€” pinion RPMFinds the pinion speed for a rack speedRequires rack tooth density, pinion teeth and rack speed
Motion โ€” implied teethFinds the tooth count that gives a rack speedRequires rack tooth density, pinion speed in RPM and rack speed
Motion โ€” tooth densityFinds the rack tooth density that gives a rack speedRequires pinion teeth, pinion speed in RPM and rack speed

Lengths can be entered in mm, cm or inches, and the pitch radius also in metres. Tooth density is in teeth/m, teeth/cm or teeth/in, and rack speed in m/min, mm/min, mm/s, in/min or ft/min. Geometry answers also list pitch diameter, travel per revolution and circular pitch. Motion answers list rack speed, pinion speed and travel per revolution.

Gear Rack Ratio Formulas

R = N รท (2ฯ€ ร— r)
RRack ratio: rack teeth per unit of length (teeth/m)
NNumber of teeth on the pinion
rPitch radius of the pinion, half its pitch diameter (m)

One turn of the pinion moves the rack by the circumference of the pinion’s reference circle [2], which is 2ฯ€ ร— r, and passes N teeth. The rack ratio is therefore the reciprocal of the circular pitch p, the distance from one tooth to the next. Circular pitch is ฯ€ times the module, the pitch diameter is the tooth count times the module, and module = 25.4 รท diametral pitch [1].

Rack ratio โ€” tooth density

This is the formula above. A 20-tooth pinion with a 50 mm pitch radius gives 20 รท (2ฯ€ ร— 0.05) = 63.662 teeth/m.

Rack ratio โ€” implied teeth

N = R ร— 2ฯ€ ร— r

A rack with 50 teeth/m and a pinion pitch radius of 100 mm implies 31.4159 teeth. A count that is not a whole number means no real pinion fits those two values.

Rack ratio โ€” pitch radius

r = N รท (2ฯ€ ร— R)

A 20-tooth pinion on a rack with 100 teeth/m has a pitch radius of 31.831 mm.

Metric pitch โ€” module

m = d รท N [1]

d is the pitch diameter in mm. A 40 mm pinion with 20 teeth has a module of 2 mm.

Metric pitch โ€” implied teeth

N = d รท m

A 40 mm pitch diameter at module 2 implies 20 teeth.

Metric pitch โ€” diameter

d = m ร— N [1]

A module 2 pinion with 20 teeth has a 40 mm pitch diameter.

Imperial pitch โ€” diametral pitch

DP = N รท d

d is the pitch diameter in inches. A 2 in pinion with 20 teeth has a diametral pitch of 10. Rack tooth density in teeth/in is DP รท ฯ€, so the two are different numbers.

Imperial pitch โ€” implied teeth

N = DP ร— d

A 2 in pitch diameter at 10 DP implies 20 teeth.

Imperial pitch โ€” diameter

d = N รท DP

A 10 DP pinion with 20 teeth has a 2 in pitch diameter, which is 50.8 mm.

Motion โ€” rack speed

v = RPM ร— N รท R

N รท R is the rack travel for one turn of the pinion. With R in teeth/m, v is in m/min. A 20-tooth pinion at 100 RPM on a rack with 160 teeth/m moves the rack at 12.5 m/min.

Motion โ€” pinion RPM

RPM = v ร— R รท N

A rack speed of 12.5 m/min with 160 teeth/m and a 20-tooth pinion needs 100 RPM.

Motion โ€” implied teeth

N = v ร— R รท RPM

A rack speed of 12.5 m/min at 100 RPM on a rack with 160 teeth/m implies a 20-tooth pinion.

Motion โ€” tooth density

R = RPM ร— N รท v

A 20-tooth pinion at 100 RPM moving the rack at 12.5 m/min implies 160 teeth/m.

Limits of This Estimate

  • The results describe ideal pitch geometry. Backlash, tooth wear and mounting error are not included.
  • All diameters and radii are pitch (reference) dimensions, not the outside diameter over the tooth tips. The tip diameter of a standard gear is the reference diameter plus two modules [1].
  • An implied tooth count is not rounded. Round it to a whole number and recalculate to get real geometry.
  • Rack speed is a magnitude only, with no direction, and assumes the pinion drives the rack without interruption.

Sources

  1. KHK Kohara Gear Industry, Basic Gear Terminology and Calculation: module, circular pitch, reference diameter and the module to diametral pitch conversion
  2. KHK Kohara Gear Industry, Gear Technical Reference, Calculation of Gear Dimensions: rack travel for one turn of the pinion
