Calculate MSI (thousand square inches) for sheets, labels, and rolls, convert MSI to linear feet and MSF, or find material cost and price per MSI.
- All Math and Numbers Calculators
- GSM (Grams Per Square Meter) Calculator
- Roll Length Calculator
- Basis Weight Calculator
- Paper Weight Conversion Calculator
- GSM to Thickness Calculator
- lbs to GSM Calculator

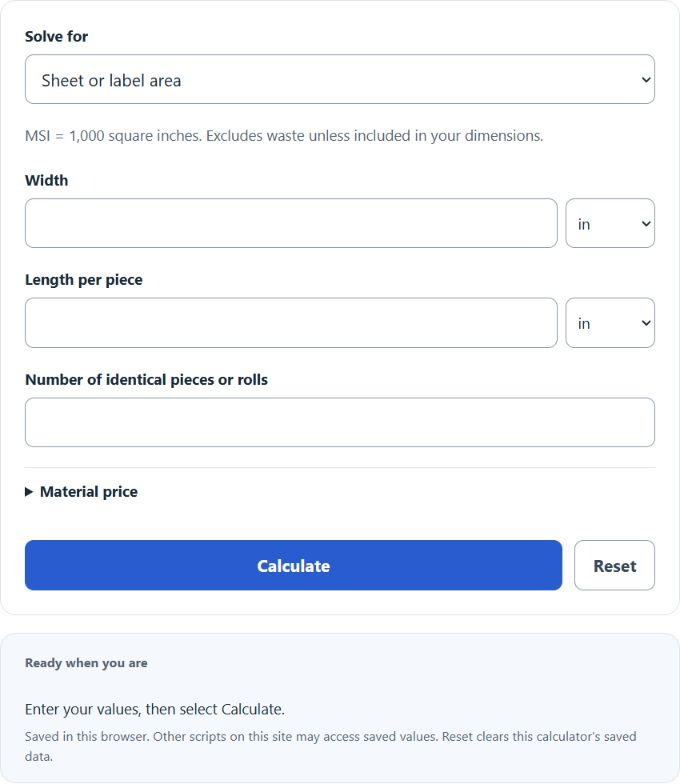

Calculator Functions
| Function | What it does | What it requires |
|---|---|---|
| MSI of sheets or labels | Finds the total area of cut sheets or labels in MSI | Requires the width and length of one piece and the number of identical pieces |
| MSI of rolls (feet to MSI) | Finds the total area of roll material in MSI from its width and length | Requires the roll width, the length per roll in feet or meters, and the number of identical rolls |
| MSI to linear feet | Converts an area in MSI to the length of material at a set width | Requires the total area in MSI, the web width and the length unit (feet or meters) |
| Price per MSI | Finds the material price for each MSI, and for each square foot | Requires the total area in MSI and the total material cost |
Widths and piece lengths can be entered in in, ft, cm or mm. The two area functions accept an optional price per MSI and then show the material cost. Their results also give the area in square inches, square feet, MSF and MMSI.
MSI Formulas
| MSI | Area in thousands of square inches |
| W | Width of the material (in) |
| L | Length of the material (in) |
MSI of sheets or labels
Q is the number of identical pieces. One 12 × 18 in sheet is 12 × 18 ÷ 1,000 = 0.216 MSI [1], and 500 of them are 108 MSI. Dimensions in other units are converted to inches first.
MSI of rolls (feet to MSI)
÷ 1,000 [1]
Roll length is usually given in feet, so it is multiplied by 12 to reach inches. A 12 in wide roll that is 5,000 ft long is 12 × 12 × 5,000 ÷ 1,000 = 720 MSI [1]. A 54 in roll of the same length is 3,240 MSI.
MSI to linear feet
(W × 12) [1]
The area is divided by the web width to get a length. 1,440 MSI of 13 in wide material is 1,440,000 ÷ 156 = 9,230.77 ft [1], or 2,813.54 m.
Price per MSI
cost ÷ MSI [1]
A 720 MSI roll that costs 360 is 0.50 per MSI. Because a square foot is 144 in², the price per square foot is the price per MSI × 0.144, which is 0.072 here. Any currency works as long as it is the same throughout.
MSI Unit of Measure
MSI stands for thousand square inches: the M is the Roman numeral for 1,000, so 1 MSI = 1,000 in² [1]. It is an area unit used to quote and price label stock, film and other printing substrates sold in rolls and sheets. It is not the same as a mil, which is a thickness of 0.001 in.
| Unit | Meaning | In MSI |
|---|---|---|
| MSI | 1,000 square inches | 1 |
| MMSI | 1,000,000 square inches | 1,000 |
| MSF | 1,000 square feet | 144 |
| Square foot | 144 square inches | 0.144 |
| Square meter | 1,550.003 square inches | 1.550 |
Limits of This Estimate
- The area is the material entered and nothing more. Trim, bleed, matrix, setup and running waste need to be in the dimensions or added separately.
- Every piece or roll is assumed to have the same width and length.
- MSI to linear feet assumes one constant web width.
Sources
- MGX (Masterpiece Graphix), Cheat Sheet for Calculating MSI: MSI as 1,000 square inches, with the sheet, roll, length and price per MSI formulas and examples
