Calculate surface speed in SFM from spindle RPM and effective cutting diameter in inches or millimeters. Millimeter input is converted to inches for the formula below.
- PPR To RPM Calculator
- Hz to RPM Calculator
- Cycles To ms Calculator
- Dimensional Analysis Calculator
- All Unit Converters
RPM to SFM Formula
The following formula is used to calculate surface feet per minute from spindle speed and diameter.
Variables:
- SFM is the surface speed in surface feet per minute
- D is the diameter in inches
- RPM is the spindle speed in revolutions per minute
To calculate SFM, multiply pi by the diameter and the RPM, then divide the result by 12 to convert inches per minute into feet per minute.
What is RPM to SFM?
RPM to SFM conversion is used in machining, metalworking, and woodworking to convert rotational speed into surface speed. Surface feet per minute describes how fast the outside edge of a tool or workpiece is moving across the material. Because larger diameters travel farther in one revolution, the same RPM produces a higher SFM as diameter increases.
This measurement is important when selecting cutting speeds, comparing tooling recommendations, and matching spindle settings to the material being machined. A common relationship used for these calculations is SFM = (ฯ ร Diameter ร RPM) / 12.
How to Convert RPM to SFM?
The following steps outline how to convert RPM to SFM.
- First, determine the spindle speed in revolutions per minute (RPM).
- Next, determine the effective cutting diameter of the tool or workpiece and choose inches or millimeters.

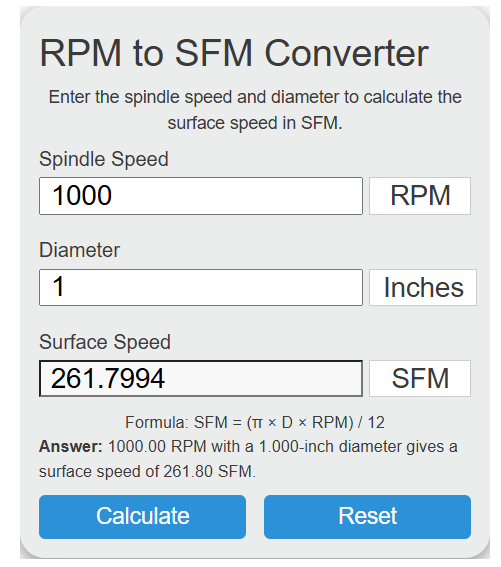

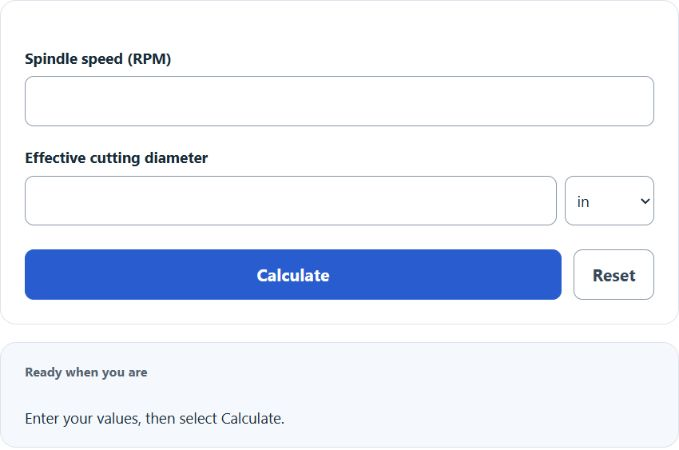

- Select Calculate. The converter applies SFM = (ฯ ร D ร RPM) / 12 with D in inches and also shows m/min.
- Compare the calculated speed with the tool manufacturerโs cutting data and the machineโs operating limits; this conversion does not establish a safe setting.
Example Problem:
Use the following values as an example problem to test your knowledge.
RPM = 1000
Diameter = 1.0 inch
SFM = (ฯ ร 1.0 ร 1000) / 12 = 261.8 SFM
RPM to SFM Conversion Table
The table below lists example RPM to SFM conversions for a 1.0 inch diameter tool.
| Diameter (in) | RPM | Surface Speed (SFM) |
|---|---|---|
| 1.0 | 100 | 26.18 SFM |
| 1.0 | 500 | 130.90 SFM |
| 1.0 | 1000 | 261.80 SFM |
| 1.0 | 2000 | 523.60 SFM |
If you know the desired cutting speed and diameter, you can also rearrange the formula to solve for spindle speed: RPM = (12 ร SFM) / (ฯ ร D). This makes RPM to SFM conversion especially useful when setting up machines based on recommended surface speed charts.
