Enter the pressure applied to the soil and the resulting deflection to calculate the subgrade modulus. The subgrade modulus is a measure of the soil’s stiffness and is used in pavement and foundation design.

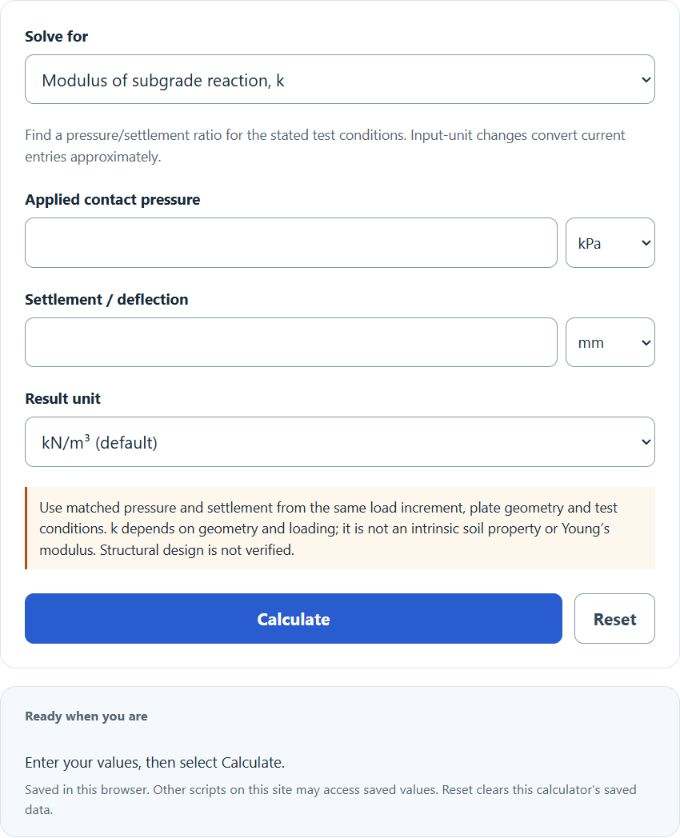

Subgrade Modulus Calculator

Basic k = p/d
From CBR/Mr
Plate Load Test

Enter any 2 values to calculate the missing variable


Related Calculators

Subgrade Modulus Formula

The following formula is used to calculate the subgrade modulus:

K = P / δ

Variables:

  • K is the subgrade modulus (pci)
  • P is the pressure applied to the soil (psi)
  • δ is the deflection of the soil (inches)

To calculate the subgrade modulus, divide the pressure applied to the soil by the deflection of the soil.

What is Subgrade Modulus?

Subgrade modulus, formally called the modulus of subgrade reaction and symbolized as k, is the ratio of contact pressure to settlement at the surface of a soil mass. It was introduced by Winkler in 1867 and later formalized by Terzaghi in 1955 as a practical way to represent soil-structure interaction without modeling the full elastic continuum of the ground beneath a structure. The parameter is used across two distinct engineering domains: rigid pavement design (where k characterizes support beneath concrete slabs) and mat/spread foundation design (where k defines spring stiffness in structural analysis software).

A critical distinction that is often overlooked: the k-value used in pavement design and the k-value used in foundation design are not interchangeable. Pavement k is typically derived from a 12-inch (305 mm) diameter plate bearing test or from correlations with resilient modulus. Foundation k must be scaled to the actual loaded area of the footing or mat, because k is not an intrinsic soil property. It depends on the geometry and stiffness of the loaded area, the depth of the compressible layer, and the stress distribution beneath the structure.

Typical k-Values by Soil Type (USCS Classification)

The following reference values are based on a 12-inch plate bearing test and are widely used in preliminary pavement and slab-on-grade design. Actual field values can vary significantly based on moisture content, density, and depth to bedrock.

USCS GroupSoil DescriptionTypical k Range (pci)Suggested Default (pci)
OL, OH, PtOrganic soils, peat25 to 10025
CH, MHHigh-plasticity clays and silts50 to 15050
CL, MLLow-plasticity clays and silts50 to 200100
SM, SCSilty and clayey sands50 to 250150
SW, SPWell-graded and poorly-graded sands150 to 400200
GM, GCSilty and clayey gravels200 to 500250
GW, GPWell-graded and poorly-graded gravels300 to 500+350

For context, weak subgrade support starts around 50 pci (13.5 MPa/m), while strong support exceeds 270 MPa/m (1,000 pci). Most natural subgrade soils in the field fall between 100 and 250 pci. Design standards such as AASHTO and FAA typically cap the maximum usable k at 500 pci for design purposes, even if the measured value is higher, because higher values yield diminishing returns in required slab thickness.

Measurement Methods

Plate Load Test (ASTM D1196 / AASHTO T 222)

The plate load test is the only direct measurement of k. A rigid circular steel plate (typically 12 inches / 305 mm in diameter for AASHTO/FAA standards, or 75 cm for IRC standards used in India) is loaded incrementally on a prepared subgrade surface. Deflection is recorded at each load increment. The k-value equals the applied pressure at a specified deflection divided by that deflection. The standard test deflection is typically 0.05 inches (1.27 mm).

When a non-standard plate size is used in the field, the measured k must be corrected to the standard diameter. The correction is linear: k_corrected = k_measured x (d_test / d_standard), where d_test is the plate diameter used and d_standard is 12 inches (or 75 cm for IRC). This correction accounts for the fact that larger loaded areas mobilize deeper soil zones and produce larger deflections per unit pressure.

CBR and Resilient Modulus Correlations

Because plate load tests are expensive and time-consuming, k is frequently estimated from California Bearing Ratio (CBR) or resilient modulus (Mr) data using empirical correlations. The general approach converts CBR to Mr first, then converts Mr to k:

  • General correlation (AASHTO 1993): Mr (psi) = 2,555 x CBR0.64
  • Fine-grained soils (CBR ≤ 10): Mr (psi) = 1,500 x CBR
  • Granular soils (CBR > 10): Mr (psi) = 3,000 x CBR0.65
  • Mr to k (AASHTO 1993 simplified): k (pci) = Mr / 19.4

It is worth noting that the 1993 AASHTO constant of 19.4 for the Mr-to-k conversion has been revisited. Post-2011 AASHTO MEPDG (Mechanistic-Empirical Pavement Design Guide) procedures use a more refined relationship that accounts for slab size, subbase stiffness, and load transfer. For new rigid pavement design using MEPDG, the composite k is computed internally by the software and the simple division by 19.4 should be treated as an approximation only.

Terzaghi’s Size and Shape Corrections

Because k is geometry-dependent, Terzaghi (1955) proposed correction formulas to scale the plate-test k-value to a real foundation size. These corrections differ for cohesive and cohesionless soils:

For cohesionless (granular) soil:

k_f = k_1 × [(B + 1) / (2B)]²

Where k1 is the plate test value (1 ft plate), B is the foundation width in feet, and kf is the corrected value for the foundation. For a 10-foot wide footing on sand, this yields kf = k1 x 0.3025, meaning the effective k drops to about 30% of the plate test value.

For cohesive (clay) soil:

k_f = k_1 / B

Where B is in feet. This is a more severe reduction. A 10-foot footing on clay would use only 10% of the plate test k-value.

For rectangular foundations (L > B):

k_rect = k_square × [(m + 0.5) / (1.5m)]

Where m = L/B (length-to-width ratio). As the foundation becomes more elongated, the effective k approaches 2/3 of the square foundation value.

These corrections are essential for foundation engineering but are often overlooked. Using a raw plate-test k directly in a mat foundation analysis can overestimate soil stiffness by 3x to 10x, leading to unconservative designs with underestimated settlements.

Composite k-Value: Effect of Subbase Layers

In rigid pavement design, the effective k-value used in slab thickness calculations is not just the raw subgrade k. Placing a granular or stabilized subbase layer over the subgrade increases the composite (top-of-subbase) k-value. The magnitude of the improvement depends on the subbase thickness and stiffness.

As a general reference for untreated granular subbase placed over a subgrade with k = 100 pci: 4 inches of subbase typically increases the effective k to about 130 pci, 6 inches to about 140 pci, 9 inches to about 160 pci, and 12 inches to about 190 pci. Cement-treated or lean concrete subbases produce substantially larger increases, sometimes doubling or tripling the effective k, but the design must then account for potential erosion of the treated layer under repeated loading.

Pavement vs. Foundation k: Why They Differ

The k-value in pavement engineering and the k-value in structural/foundation engineering are conceptually the same (pressure per unit deflection) but are applied at very different scales and with different assumptions. Pavement k is measured or estimated for a 12-inch plate and used directly in the Westergaard equations or finite element models for concrete slab design. The loaded area (a wheel or axle footprint) is small relative to the slab, so size correction is unnecessary.

Foundation k, by contrast, must account for the full width of the footing or mat. A 30-foot by 50-foot mat foundation mobilizes soil behavior to a depth of 1.5B to 2B (45 to 60 feet), far deeper than a plate test’s influence zone of roughly 1.5 to 2 plate diameters (18 to 24 inches). Ignoring this scale difference is one of the most common errors in geotechnical practice and leads to significant overestimation of foundation stiffness.

Relationship Between k and Elastic Modulus (E)

For finite element analysis, engineers sometimes need to convert between subgrade modulus k and the soil’s elastic (Young’s) modulus E. The relationship depends on the loaded area and Poisson’s ratio (v) of the soil. For a circular loaded area of radius r on a semi-infinite elastic half-space:

k = E / [r × (1 - v²)]

This confirms that k is not a soil constant. Doubling the loaded radius r cuts the k-value in half for the same soil. For a Poisson’s ratio of 0.3 (typical for sand) and E = 10,000 psi with a 6-inch radius plate, k = 10,000 / (6 x 0.91) = 1,831 pci. The same soil under a 60-inch radius footing gives k = 183 pci.

Limitations and Practical Considerations

The Winkler spring model that uses k assumes each point on the soil surface deflects independently, with no shear coupling between adjacent springs. Real soils transfer load laterally, so the Winkler model underestimates the stiffness contribution from adjacent unloaded soil. More advanced models (Pasternak, Vlasov, elastic continuum) account for this coupling but require additional soil parameters that are harder to measure.

Subgrade modulus is also sensitive to moisture and seasonal changes. Freeze-thaw cycles can reduce k during spring thaw to as little as 50% of the dry-season value. AASHTO recommends computing an effective annual k by weighting monthly values, with the weakest months (spring thaw, wet season) having disproportionate influence on pavement performance. For slab-on-grade design in areas with expansive clays, k should be evaluated at the expected equilibrium moisture content, not at optimum Proctor moisture, because field conditions are rarely at optimum.

Unit Conversions

FromToMultiply by
pci (lb/in³)kN/m³271.45
pci (lb/in³)MN/m³0.27145
kN/m³pci0.003685
MN/m³pci3.685
pcikPa/mm0.27145
kPa/mmpci3.685
