Calculate the Wobbe index of a fuel gas from its calorific value and relative density, solve for either one, or compare two gases on a gross or net basis.
Related Calculators
- Specific Gravity Calculator
- Volume Fraction Calculator
- Van Der Waals Equation Calculator
- Fugacity Coefficient Calculator
- All Chemistry Calculators
Wobbe Index Formula
The following example problem outlines the steps and information needed to calculate the Wobbe Index.
Variables:
- WI is the Wobbe Index (same units as Vc, e.g., Btu/ftยณ or kJ/mยณ)
- Vc is the calorific value per unit volume on your selected gross/HHV or net/LHV basis (e.g., BtuIT/ftยณ)
- Gs is the specific gravity (relative density) of the fuel gas relative to air at the same reference conditions (dimensionless)
To calculate a Wobbe index, divide calorific value on the selected gross/HHV or net/LHV basis by the square root of gas relative density. A matching index alone does not establish safe appliance interchangeability.
How to Calculate Wobbe Index?
The following steps outline how to calculate the Wobbe Index.
- First, select Wobbe index and the heating-value basis, then enter the calorific value and its energy-density unit.
- Next, determine the specific gravity of the fuel (relative to air).
- Next, gather the formula from above = WI = Vc / (Gs)1/2.
- Finally, calculate the Wobbe Index.

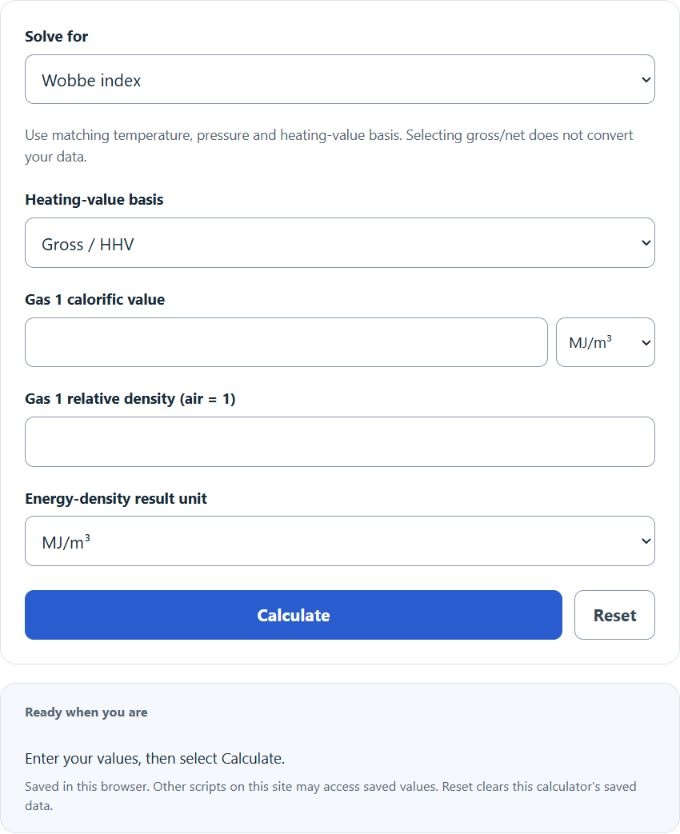

- After inserting the variables and calculating the result, check your answer with the calculator above.
Example Problem :
Use the following variables as an example problem to test your knowledge.
HHV value for the fuel (Btu/ftยณ) = 1050
specific gravity of the fuel = .61
WI = 1050 / โ0.61 โ 1344.387239 BtuIT/ftยณ.
