Calculate dislocation density, total dislocation line length, or volume from any two inputs with m, cm, in, ft, and per-area unit options.
- All Physics Calculators
- Hall-Petch Equation Calculator
- Lattice Spacing Calculator
- Lattice Strain Calculator
- Scherrer Formula Calculator
- Planar Density Calculator
Dislocation Density Formula
The dislocation density calculation is based on the total dislocation line length divided by the material volume.
DLD = S / V
Rearranged forms used to calculate a missing value are:
S = DLD * V
V = S / DLD
- DLD = dislocation density, usually expressed in m-2 or per m2
- S = total dislocation line length
- V = volume of the material sample

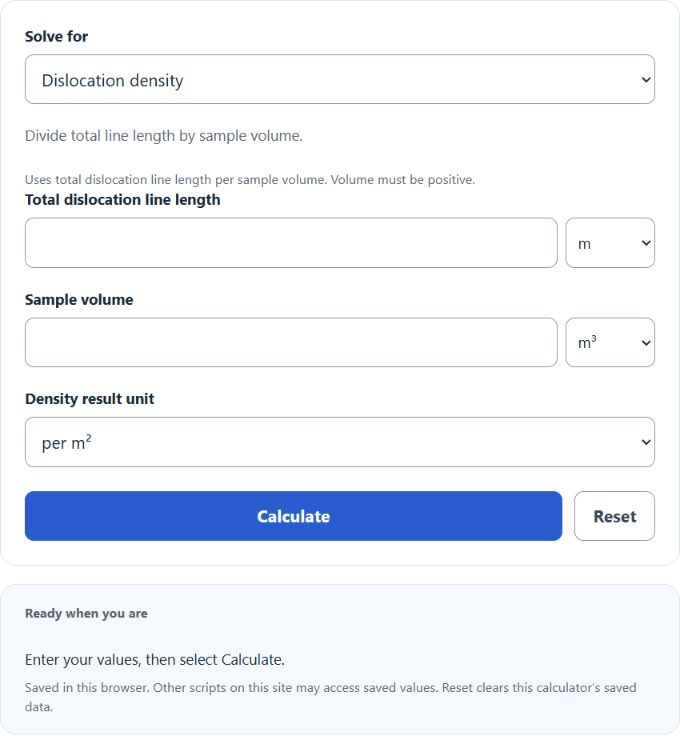

The calculator lets you enter any two of the three values and solves for the missing one. If you enter volume and total dislocation line length, it calculates dislocation density. If you enter dislocation density and volume, it calculates total dislocation line length. If you enter dislocation density and line length, it calculates the required volume.
Internally, the calculation is performed in SI base units: cubic meters for volume, meters for line length, and per square meter for dislocation density. The result is then converted back to the unit selected in the output field.
Common Dislocation Density Ranges
Dislocation density varies widely depending on material type, processing history, deformation, and heat treatment.
| Material or condition | Typical dislocation density | Interpretation |
|---|---|---|
| Well-annealed metal | 108 to 1010 m-2 | Low dislocation content |
| Moderately deformed metal | 1011 to 1013 m-2 | Work hardening is significant |
| Heavily cold-worked metal | 1014 to 1016 m-2 | Very high defect density |
| Highly strained nanostructured metals | 1015 m-2 or higher | Extremely dense dislocation network |
Unit Relationships for Dislocation Density
| Unit selected | Equivalent in m-2 |
|---|---|
| 1 per m2 | 1 m-2 |
| 1 per cm2 | 10,000 m-2 |
| 1 per in2 | 1,550.0031 m-2 |
| 1 per ft2 | 10.7639 m-2 |
Example Problems
Example 1: Calculate dislocation density
You have a sample volume of 0.002 m3 and a total dislocation line length of 500 m.
DLD = S / V
DLD = 500 / 0.002 = 250000 m^-2
The dislocation density is 2.5 × 105 per m2.
Example 2: Calculate total dislocation line length
A material has a dislocation density of 4.0 × 1012 m-2 and a sample volume of 1.5 × 10-6 m3.
S = DLD * V
S = 4.0*10^12 * 1.5*10^-6 = 6.0*10^6 m
The total dislocation line length is 6.0 × 106 m.
FAQ
Why does dislocation density have units of per square meter?
Dislocation density is total line length divided by volume. In SI units, that is meters divided by cubic meters:
m / m^3 = 1 / m^2
That is why the result is written as m-2 or per m2.
Can dislocation density be zero?
In the formula, dislocation density can be zero if the total dislocation line length is zero. In real crystalline materials, a perfectly zero dislocation density is uncommon, but very low values can occur in carefully grown or annealed crystals.
Why does the calculator require exactly two values?
The relationship has three variables: dislocation density, total dislocation line length, and volume. Any one of them can be solved if the other two are known. If all three are entered, there is no missing value to calculate. If fewer than two are entered, there is not enough information to solve the equation.
