Calculate impact G-force from speed and stopping time or distance, convert an acceleration to g, and estimate average impact force in newtons or pounds.
- All Physics Calculators
- All Force Calculators
- Angle of Impact Calculator
- Impact Velocity Calculator
- RPM to G Force Calculator
- Average Impact Force Calculator

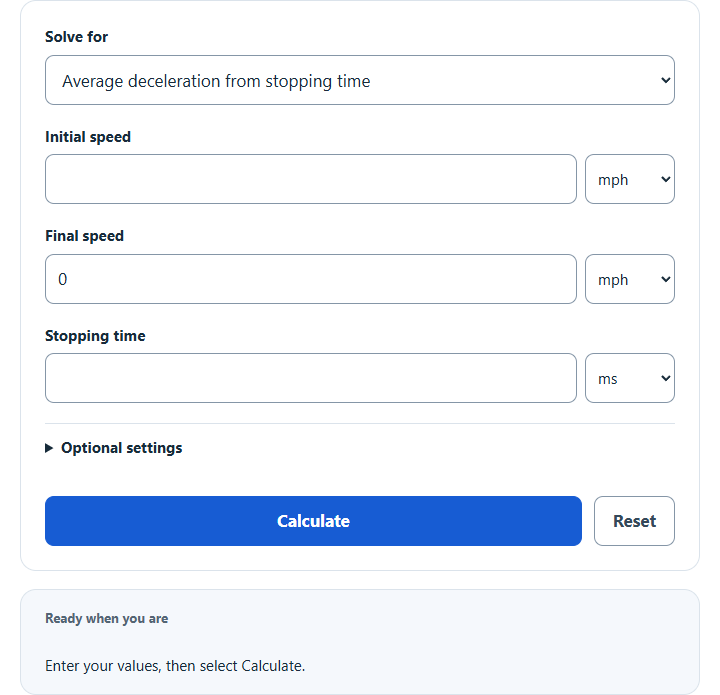

Calculator Functions
| Function | What it does | What it requires |
|---|---|---|
| Average deceleration from stopping time | Finds the g-force of an impact from how long the stop took | Requires the initial speed, the final speed and the stopping time |
| Deceleration from stopping distance | Finds the g-force of an impact from how far the object travelled while stopping | Requires the initial speed, the final speed and the stopping distance |
| Distance for a target deceleration | Finds the stopping distance and time that hold an impact to a chosen g-force | Requires the initial speed, the final speed and the target deceleration in g |
| G-force from acceleration | Converts an acceleration to g | Requires the acceleration |
Speeds can be entered in mph, km/h, m/s, ft/s or knots, the stopping time in milliseconds or seconds, and the stopping distance in mm, cm, m, in or ft. The final speed starts at 0, a full stop. An optional object mass in kg or lb adds the average net stopping force.
Impact G Force Formulas
| G | Average deceleration, in multiples of standard gravity |
| vi | Initial speed (m/s) |
| vf | Final speed (m/s), lower than the initial speed |
| d | Stopping distance (m) |
| g₀ | Standard gravity, 9.80665 m/s² [3] |
A g-force is a deceleration divided by standard gravity. It is a scale for the deceleration, not a force, and it does not depend on the mass of the object [2]. The distance form above follows from the equations for speed and position under constant acceleration [2].
Average deceleration from stopping time
Deceleration is the change in speed divided by the time it takes [1]. Stopping from 30 mph (13.4112 m/s) in 100 milliseconds averages 13.6756 g.
Deceleration from stopping distance
The main formula applies directly. Stopping from 45 m/s in 1.25 m averages 45² ÷ (2 × 1.25 × 9.80665) = 82.597 g.
Car crash g-force
For a vehicle that hits a fixed barrier, the stopping distance is roughly how far the front of the vehicle crushes. A stop from 35 mph (15.6464 m/s) in 2 ft (0.6096 m) averages 20.4754 g.
Impact force
With the optional mass entered, the calculator gives the average net stopping force, mass times deceleration [1]. An 80 kg occupant in the 35 mph example is slowed by an average of 16,064 N.
Distance for a target deceleration
Holding a stop from 30 mph to 20 g takes 0.4585 m and 0.0684 s at constant deceleration.
G-force from acceleration
An acceleration of 49.03325 m/s² is 5 g. Values in ft/s² are converted with 1 ft = 0.3048 m [3].
Limits of This Estimate
- Every result is an average over the stop. The peak deceleration in a real impact is higher than the average, and measured accelerometer readings can differ.
- The time form and the distance form give the same answer only when the deceleration is constant. For a deceleration that varies, the two averages differ.
- The motion is taken as a straight line with no rebound, so the final speed has to be lower than the initial speed.
- The result is a deceleration, not an injury rating.
Sources
- NASA Glenn Research Center, Newton's Laws of Motion: force equals mass times acceleration, and acceleration as change in velocity over time
- NASA Glenn Research Center, Ballistic Flight Equations: velocity and position under constant acceleration
- NIST, Guide to the SI (Special Publication 811), Appendix B.8: standard gravity of 9.80665 m/s² and the speed and length factors
