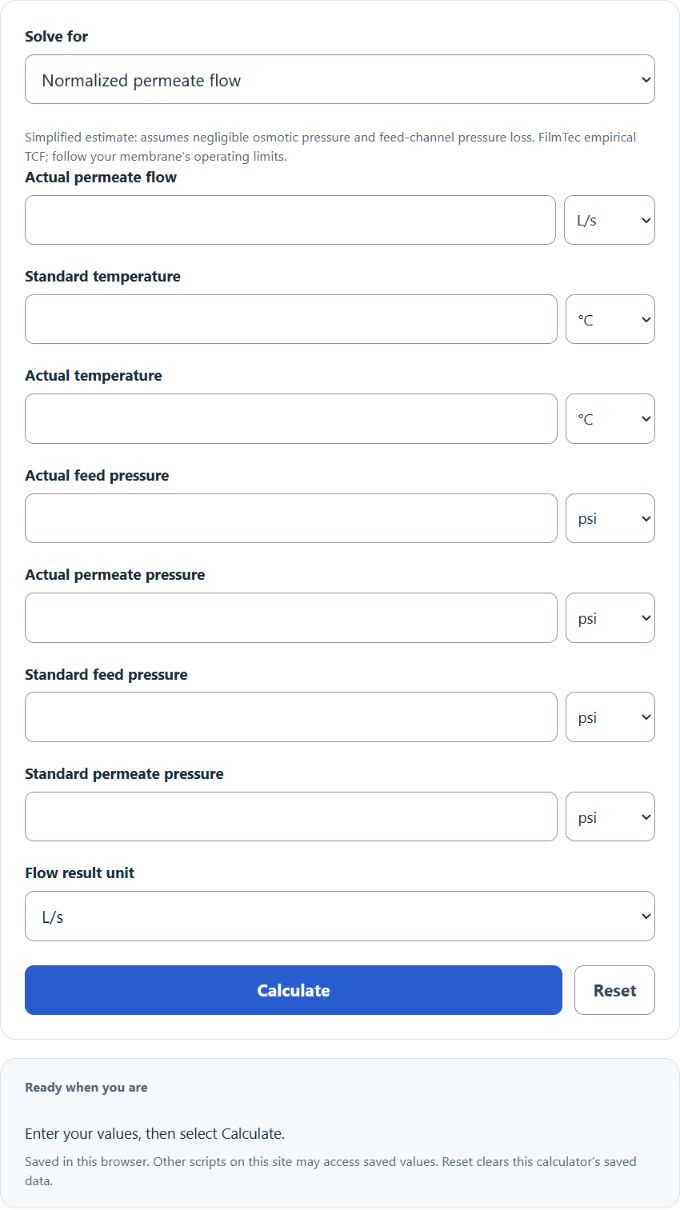

Enter the actual permeate flow, standard temperature, actual temperature, actual feed pressure, actual permeate pressure, standard feed pressure, and standard permeate pressure into the calculator to determine the normalized permeate flow.
Related Calculators
- RO Efficiency Calculator
- Mass Balance Calculator
- Calcium Saturation Index Calculator
- Hydrometer Correction Calculator
- All Chemistry Calculators
Normalized Permeate Flow Formula
The following formula is used to calculate a simplified normalized permeate flow for a given set of conditions by correcting permeate flow for temperature (via a temperature correction factor) and for the pressure difference across the membrane (feed-side pressure minus permeate pressure). For full OEM-style normalization, net driving pressure (often including osmotic pressure Δπ and average feed/concentrate pressure) and the manufacturer’s temperature correction correlation should be used.
NPF = APF \cdot \frac{TCF(T_s)}{TCF(T_a)} \cdot \frac{(P_{fs}-P_{ps})}{(P_{fa}-P_{pa})}Variables:
- NPF is the normalized permeate flow
- APF is the actual permeate flow
- T_s is the standard temperature (used to compute TCF(T_s))
- T_a is the actual temperature (used to compute TCF(T_a))
- TCF(T) is the temperature correction factor for permeate flow at temperature T (dimensionless; correlation is membrane/OEM dependent)
- P_fa is the actual feed pressure
- P_pa is the actual permeate pressure
- P_fs is the standard feed pressure
- P_ps is the standard permeate pressure
To calculate the normalized permeate flow, multiply the actual permeate flow by the ratio of the temperature correction factors TCF(T_s) / TCF(T_a). Then multiply by the ratio of the standard pressure difference to the actual pressure difference: (P_fs − P_ps) / (P_fa − P_pa).
What is Normalized Permeate Flow?
Normalized permeate flow is a measure used in reverse osmosis and other membrane filtration processes to account for variations in operating conditions such as temperature and pressure. It allows permeate flow rates to be compared under different conditions by adjusting them to a defined standard set of conditions (often 25°C and a specified driving pressure). This helps in assessing membrane performance over time, so changes in permeate flow are less likely to be caused simply by normal operating fluctuations.
How to Calculate Normalized Permeate Flow?
The following steps outline how to calculate the Normalized Permeate Flow.
- First, determine the actual permeate flow (APF).
- Next, determine the standard temperature (T_s) and the actual temperature (T_a) and compute the temperature correction factors TCF(T_s) and TCF(T_a) using an appropriate correlation (often OEM-provided).
- Next, determine the actual feed pressure (P_fa) and the actual permeate pressure (P_pa), then compute the actual pressure difference (P_fa − P_pa).
- Next, determine the standard feed pressure (P_fs) and the standard permeate pressure (P_ps), then compute the standard pressure difference (P_fs − P_ps).
- Finally, calculate the normalized permeate flow using the formula NPF = APF × (TCF(T_s) / TCF(T_a)) × ((P_fs − P_ps) / (P_fa − P_pa)).
- After inserting the values and calculating the result, check your answer with the calculator above.
Example Problem :
Use the following variables as an example problem to test your knowledge.
Actual Permeate Flow (APF) = 50 m³/h
Standard Temperature (T_s) = 25°C
Actual Temperature (T_a) = 20°C
Actual Feed Pressure (P_fa) = 60 psi
Actual Permeate Pressure (P_pa) = 10 psi
Standard Feed Pressure (P_fs) = 50 psi
Standard Permeate Pressure (P_ps) = 5 psi
