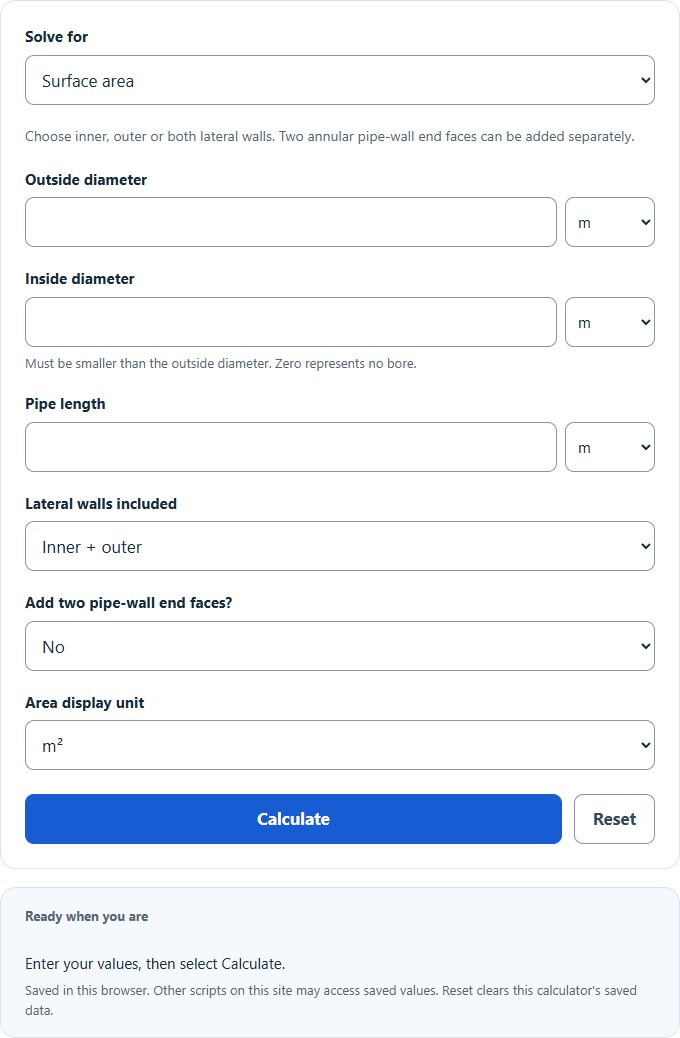

Surface Area of a Pipe Calculator for inner, outer, and end areas, reverse pipe length, real metric/imperial conversions, and coating estimates.

Choose inner, outer or both lateral walls. Two annular pipe-wall end faces can be added separately.

Must be smaller than the outside diameter. Zero represents no bore.

Optional settings

Surface Area of a Pipe Formula

The following formula gives the combined inner and outer lateral (curved) area of a straight circular pipe. It excludes the two cut end faces:

A = (pi × ID × L) + (pi × OD × L)
  • Where A is the combined inner and outer lateral area, in squared units
  • ID is the inner diameter of the pipe
  • OD is the outer diameter of the pipe
  • L is the length of the pipe

Select the inner, outer, or combined lateral surface with the calculator’s Lateral walls included control; keep the actual inside and outside diameters. The outside diameter must be positive and larger than the inside diameter. An inside diameter of zero is the solid-cylinder limit, not a substitute for selecting one surface. Diameter and length units may differ because the calculator converts them before calculating area.

Definition

What is the surface area of a pipe?

Pipe surface area depends on which physical surfaces are included. The outside lateral area is π OD L, the inside lateral area is π ID L, and their sum is π (OD + ID) L. Adding both annular cut end faces contributes π/2 (OD² − ID²), equivalently π/2 (OD − ID)(OD + ID). These faces are the two rings of pipe-wall material; the bore openings are not solid circular caps. Length mode solves from the selected lateral area only and does not include end faces.

Coating mode uses selected area × dry-film thickness for theoretical dry-film volume, then multiplies by the entered dry-film density for dry mass. Treat this as a uniform thin-film geometric estimate, not an exact model of a thick radial coating or liquid paint purchase quantity. Liquid consumption also depends on the product’s volume solids, application losses and surface condition. Any displayed 10% allowance is an illustration, not a universal waste factor.

Formula and unit references: OpenStax cylinder and circle areas, NIST SI conversion factors, Hempel theoretical coating coverage, and Jotun application guidance on wet/dry film and coating losses.

Example Problem

How to calculate the surface area of a pipe?

First, determine the inner diameter of the pipe. In this example, the inner diameter is calculated to be 5 inches.

Next, determine the outer diameter of the pipe. In this case, the OD is measured to be 8 inches.

Next, determine the length of the pipe. Measuring the length yields 20 inches.

Finally, calculate the combined lateral area, excluding the end faces, using the formula above:

A = (pi * ID * L) + (pi*OD*L)

A = (3.14159 *5 * 20) + (3.14159*8*20)

A = 816.81 in² (combined inner and outer lateral area, excluding end faces)
